Friction Coefficient Footwear Testing Equipment For Floorings Computer System

Friction Coefficient Footwear Testing Equipment For Floorings Computer System

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: SATRA TM144, EN13287
Model Number: GX-5100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International standard wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Alternative Name: Shoes Slip Resistance Tester Product Model: GX-5100
Test Standard: SATRA TM144, EN13287 Operating System: Windows
Volume: 1010×670×1900 Mm Weight: About 250kg
High Light:

shoe tester

,

shoe testing machine

Product Description

Computer System Friction Coefficient Testing Machine for Footwear and Floorings





1. Product Model:GX-5100



2. Description:

The tester determines the coefficient of friction between footwear outsoles and flooring surfaces under conditions simulating those experienced at the most critical parts of a typical walking step. The method is applicable to all types of footwear, outsole units, heel top pieces(top lifts) and sheet soling materials, also most types of floorings including matting and stair nosings.



3. Test principle:

A footwear outsole and a flooring surface are brought into contact under a predefined force. After a short period of static contact the footwear and flooring surface are moved relative to one another at a constant speed. The force required to move the surface is measured and its value after a defined period divided by the contact force to give the coefficient of friction, under the particular conditions of the test. The test may be carried out dry or with water or other contaminant on the flooring surface.



4. Test standard: SATRA TM144, EN13287



5. Technical Parameter:

Maximum vertical pressure

1000N

Maximum level  pressure

1000N

Compression air

Minimum of 5 bar

Maximum test speed

500mm/s

Minimum test speed

50mm/s

Static contact time

0—5s

Vertical sensor

1.25KN

Level sensor

0.8KN×2

Computer

Applicable to software, including DVD record

Operating system

Windows XP

Display

15 inches, colorful LCD

Data query rate

1000 data point/second/channel

Data channels

4

Volume

1010×670×1900 mm

Weight

About 250kg

Power

240/220V -50Hz;220V- 60Hz;110V -60Hz; single phase

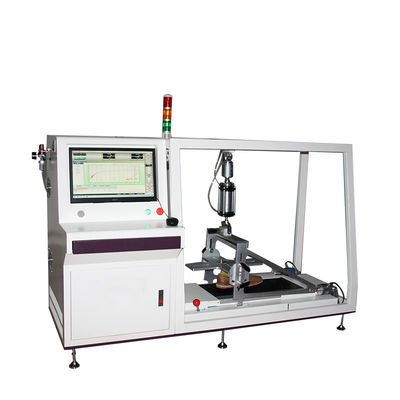

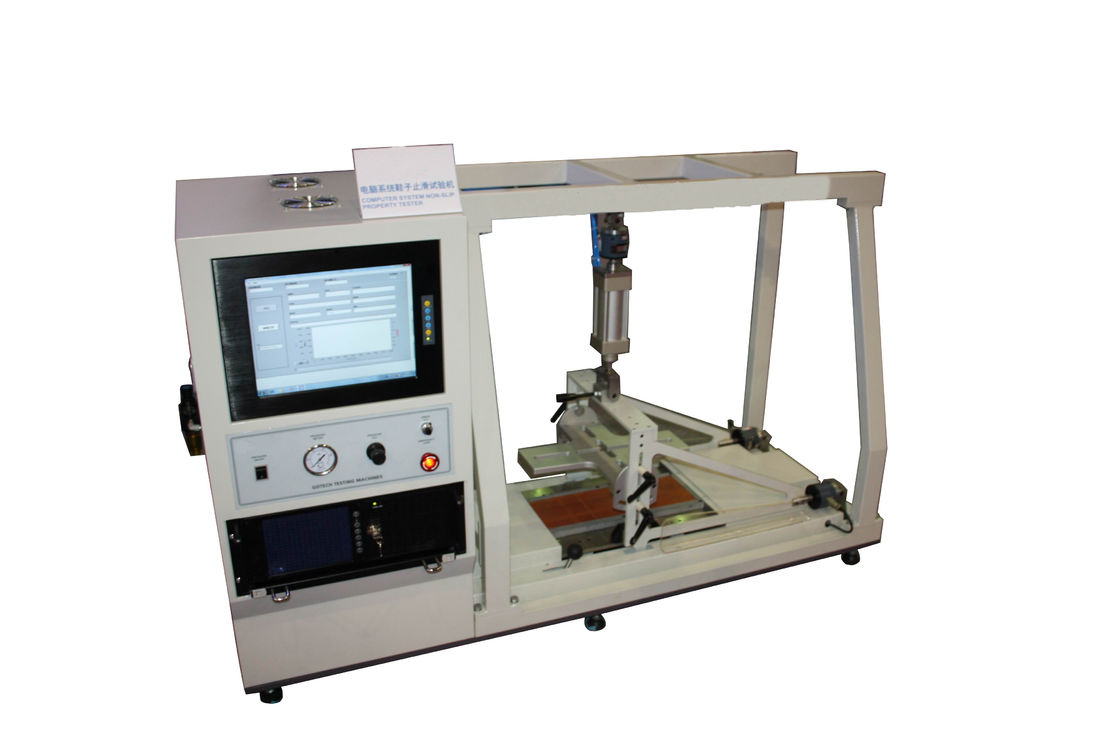

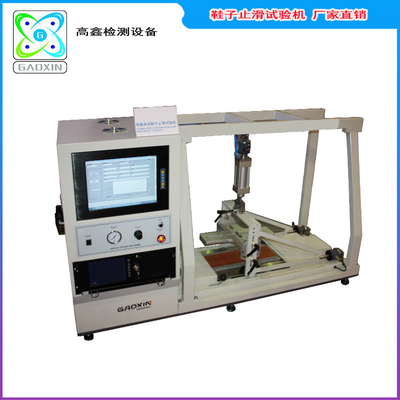

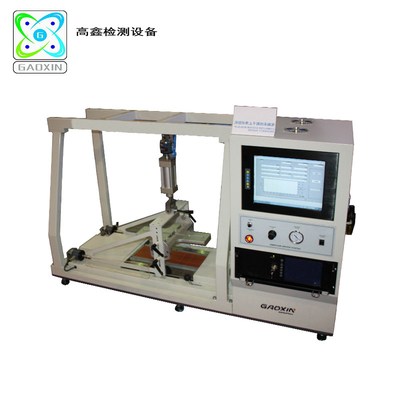

6.  Picture

Friction Coefficient Footwear Testing Equipment For Floorings Computer System 0



Friction Coefficient Footwear Testing Equipment For Floorings Computer System 1
Friction Coefficient Footwear Testing Equipment For Floorings Computer System 2
Friction Coefficient Footwear Testing Equipment For Floorings Computer System 3
Friction Coefficient Footwear Testing Equipment For Floorings Computer System 4
Friction Coefficient Footwear Testing Equipment For Floorings Computer System 5
Friction Coefficient Footwear Testing Equipment For Floorings Computer System 6
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
