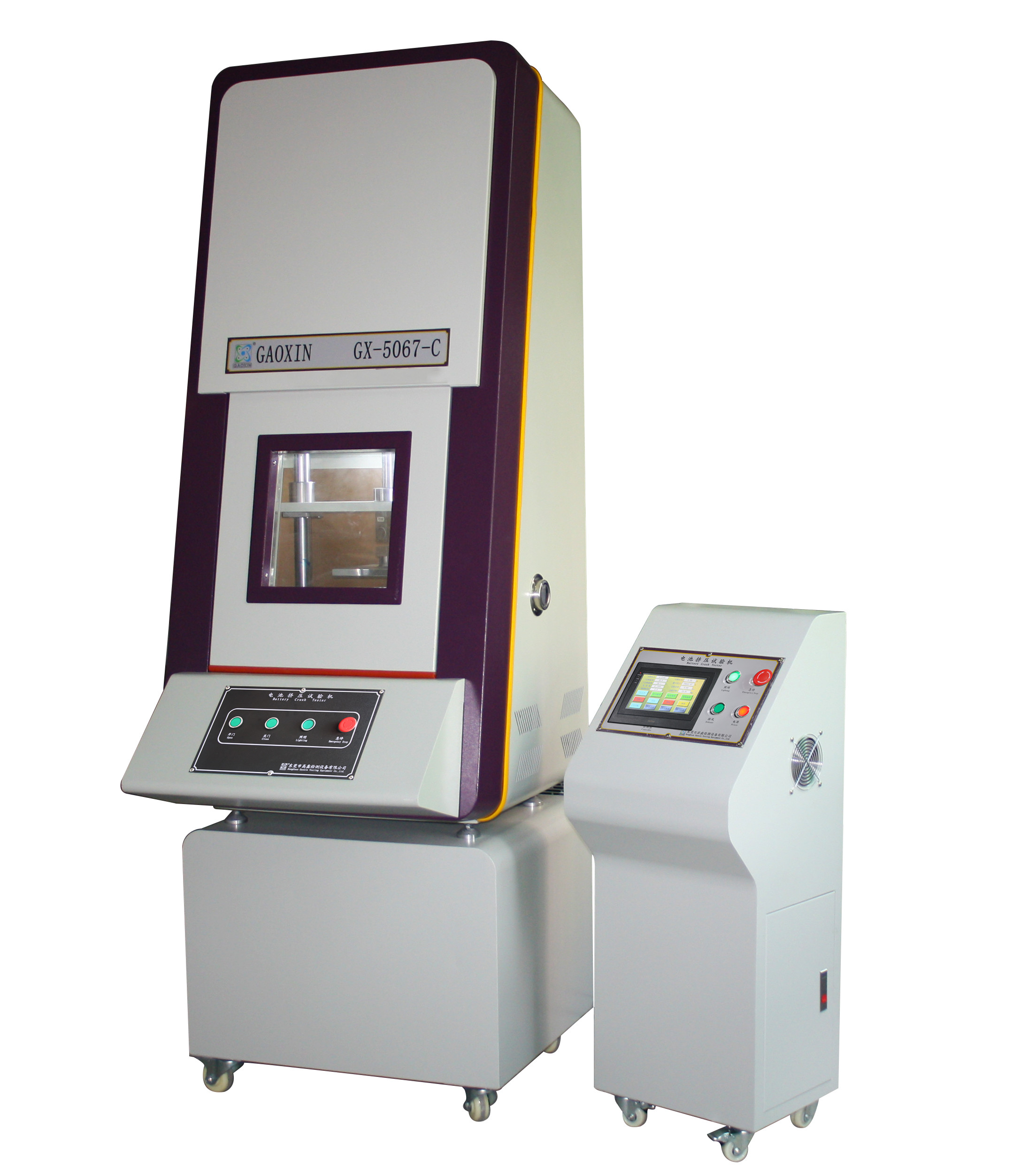

PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment

PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment

    • PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment
    • PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment
  • PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Gaoxin
    Certification: CE
    Model Number: GX-5067-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 20 working days
    Payment Terms: FOB Shenzhen, T/T
    Supply Ability: 10 set/batch
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Function: Battery Crush Test
    Force Range: 13kN(1kN~20kN Adjustable) Driver: Hydraulic Utility Drive Or Motor Drive
    Pressure Display: High Precision Pressure Sensor And Computer Screen Display Control Method: Test Software + Computer Screen Display
    Unit Change: Kg, N, Lb Power: AC380V, 50~60HZ, 10A

    PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment





    1. Product Name: Battery Crush Testing Machine



    2. Product model: GX-5067-C



    3.Test standard:

    UN38.3,UL1642,UL2054,QC/T 743-2006 , QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052, IEC62133-2012, SAE-J2464,GB31241



    4.Scope:

    The tester is applied to test safety capability of battery by simulating lithium battery suffered crush in the process of transportation, storage and handling home waste under certain temperature. The specimen of battery is qualified without leakage, explosion, breaking or fire.



    5.Test Method:

    Set temperature for testing, when the testing room get the set temperature, place battery between two plate,  impose 13kN force through hydraulic arm, keep rising the pressure until the test satisfy following any one condition:

    (1) When the crushing force get 13kN.

    (2) Or the voltage of the battery decrease to about 1/3 (UN38.3 is 100mV)

    (3)Or the battery is deformed to 1/10 of original size. (UN38.3 is 50%)

    A cylindrical or prismatic battery is to be crushed with its longitudinal axis parallel to the flat surfaces of the crushing apparatus. A prismatic battery is also to be rotated 90 degree around its longitudinal axis so that both the wide and narrow sides will be subjected to be crushing force. Each sample battery is to be subjected to a crushing force in only one direction. Separate samples to be uses for each test. A coin or button battery is crushed with the flat surface of the battery parallel with the flat surfaces of the crushing apparatus.



    6.Technical Parameter:

    Driver

    Hydraulic utility drive or Servo motor drive

    Crush head

    Easy to install and change, standard round crush plate with diameter of 15 cm or  square plate with size of 15cm*15cm

    Pressure range

    13kN(1kN~20kN adjustable)

    Pressure accuracy

    0.1N

    Sensor resolution

    1/100,000

    Pressure display

    High precision pressure sensor and computer screen display

    Control method

    Test software + computer screen display

    Unit change

    kg, N, lb

    Stroke Resolution

    0.005 mm

    Data sampling frequency

    100  times/second

    Compression space

    300*300*200mm(W*D*H)

    Stroke

    200mm

    Time delay function

    0-9999min

    Weight

    220kg

    Volume

    800×630×1580mm(W×D×H)

    Structure

    Interior box:SUS304# stainless steel,

    Outward box:A3 Steel plate with paint and observation window(200*200mm)

    Power

    AC380V, 50~60HZ, 10A



    PLC Automatic Control Microcomputer Control 13 KN Compress 18650 Cylindrical Battery Crush Testing Equipment
