|Function:||Puncture Resistance And Structure Strength||Application:||Boards|
|Sample:||175mm×175mm，300 Mm×300 Mm||Puncture Head:||Height Of 25±0.7mm(1″), Radius Of 1.57±0.05mm|
TAPPI and JIS Standard, Various Capacity Optioanl Puncture Resistance Test Equipment for Board

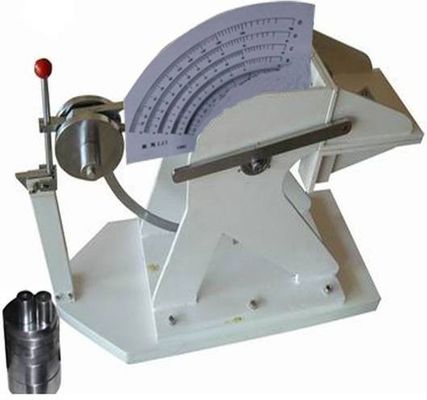

1. Product Name:Puncture resistance tester for board
2. Product Model: GX-6044
4.Description:Damage in use, similar to that occurring in this test, may result from contact with solid objects, such as the end of a piece of lumber or the corner of a wooden box. This tester measures the energy required to puncture container board or corrugated board with a pyramidal point affixed to a pendulum arm. The tester can help to evaluate the puncture resistance and structure strength of the boards.
5.Test method:Clamp the specimen, then release the pendulum by pushing the latch handle; after the pendulum has completed its swing, note the reading to the nearest one-half division on the proper scale.
Sample:175mm×175mm,300 mm×300 mm
Puncture head: height of 25±0.7mm(1″), radius of 1.57±0.05mm
A dial:0~5J Index plate:0.05J
B dial:0~12J Index plate:0.10J
C dial:0~24J Index plate:0.20J
D dial:0~48J Index plate:0.50J
