DIN 53516 SATRA TM 174 Abrasive Testing Machine Abrasion Tester Lab Equipment
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GAOXIN |
| Certification: | ISO 9001:2008 |
| Model Number: | GX-5028 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negoatiation |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 15 work days |
| Payment Terms: | FOB Shenzhen T/T |
| Supply Ability: | 50 per month |
|
Detail Information |
|||
| Material: | Stainless Steel | Function: | Abrasion Tester For Rubber |
|---|---|---|---|
| Color: | Silvery White(or Customize) | Standard: | DIN-53516, ISO-4649, GB/T 9867, SATRA TM174, JIS-K6264. |
| Volume: | 70×30×30cm | Weight: | 61kg |
| High Light: | rubber test equipment,rubber testing instruments |
||
Product Description
DIN 53516 SATRA TM 174 Lab Equipment Abrasive Testing Machine Abrasion Tester Rubber Testing Equipment
Quick Details:
|
Name |
DIN abrasive tester |
|
Usage |
test the friction of surface of rubber , tire, conveyor belt, shoe sole, synthetic leather |
|
Power |
1∮,AC220V,3A |
|
Weight |
61kg |
|
Volume |
70×30×30cm |
Description:
The tester is for the measurement of abrasion resistance or rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/ frictional wear in actual service. The abrasion resistance is measured by moving a test piece across the surface of an abrasive sheet mounted to a revolving drum, and is expressed as volume loss in mm3 or abrasion resistance index in percent. For volume loss, a smaller number indicates better abrasion resistance, while for the abrasion resistance index; a smaller number denotes poorer abrasion resistance.
Specifications:
|
Sample |
Diameter of 16mm,thickness of 6~15mm |
|
Fixture load |
2.5N |
|
Weight load |
2.5N,5N |
|
Fixture lateral moving distance |
4.2mm/circle |
|
Diameter of the cylinder |
(150±0.2)mm |
|
Length of the cylinder |
460mm |
|
Rotation speed of the cylinder |
40rpm |
|
Distance reservation |
40m/20m(equals 84 circles/42 circles) |
|
Abrasion speed |
0.32m/sec |
|
Incline angle |
3°(the angle between sample support axle and the vertical plane of cylinder) |
|
Volume |
70×30×30cm |
|
Weight |
61kg |
|
Power |
1∮,AC220V,3A |

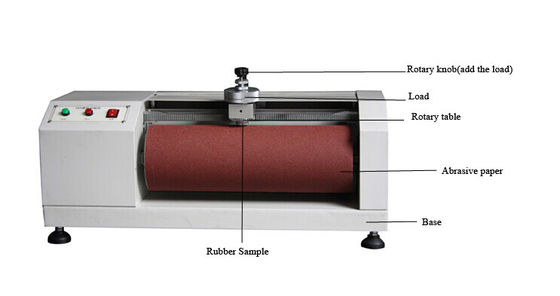

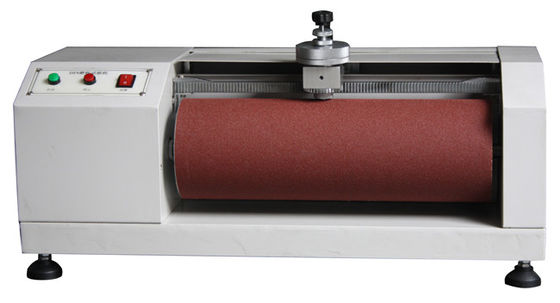

Pictures:
Q1: What is the warranty for the equipment?
A1: Warranty for the equipment is 1 year,and free lifelong technical support is available through video email.
Q2: What is the payment way?
A2: T/T ; 50% deposit and 50% before shipment.
Q3: How long the delivery time is?
A3: Generally,the delivery time is about 15-25 days, except for the special customization.
Q4: How to prove your product is qualified?
A4:The production of all equipments are strictly supervised to ensure quality. We have got various relevant certification including ISO,ASTME,DIN,JIS,UL ,BS and so on. What is more, we will carefully make installation and debugging before shipment.
Q5:Is the package strong enough for long-distance shipment?
A5:Sure.We use strong and standard wood case for the package and we will buy insurance for each shipment.
