    1000L Lab High Low Temperature Humidity Rapid Change Tester Thermal Environmental Testing Chamber

    Product Details:

    Place of Origin: cHINA
    Brand Name: Gaoxin
    Certification: ISO
    Model Number: GX-3000-CH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: International wooden package
    Delivery Time: 15-20 working days
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Get Best Price Contact Now

    Detail Information

    Testing Temperature Range: -70℃~+150℃ Cooling Time: Average 1℃/min
    Heating Time: Average 3 ℃/min Test Chamer Dimension: 1000X1000X1000mm
    Function: Programmable Control System: Korea TEMI, Japan OYO
    Refrigerant: R404A, R23 Compressor: Totally Enclosed Tecumseh
    Power Supply: AC 220V± 10%, AC380V± 10%, 50/60Hz
    High Light:

    environmental testing chamber

    ,

    environment test chambers

    Product Description

    1000L Lab High Low Temperature Humidity Rapid Change Tester Thermal Environmental Testing Chamber

    1000L Touch Screen Control Lab High Low Temperature Rapid Change Tester Thermal Shock Environmental Testing Chamber





    1. Product Name: Temperature and Humidity Test Chamber



    2. Product Model:GX-3000-CH



    3. Description:



       The thermal shock testing chamber is used for the temperature rapid change shock test for materials. The low and high temperature test storage tank can be guided into the test chamber for the rapid temperature change shock test. Also, the balance temperature control system and the wind circulatory system with the P.I.D control can ensure the stability of the system.



    4.Technical Parameter:



    Mode GX-3000-80L GX-3000-150L GX-3000-225L GX-3000-408L GX-3000-800L GX-3000-1000L
    Inner Size
    W×H×D(cm)
    40×50×40 50×60×50 60×85×80 60×85×80 100×100×80 100×100×100
    Outside Size
    W×H×D(cm)
    92×140×90 105×150×110 105×165×120 115×175×140 160×190×160 160x190x180
    Volume (L) 80 L 150L 225L 408L 800L 1000L
    Temp and Hum
    Range
    A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C
    RH20%-98%
    Function Fluctuation ±0.5°C ±2.5%RH
    Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
    Controller analytical accuracy ±0.3°C ±2.5%RH
    Material Inner Wall SUS #304 Stainless steel
    Outer Skin #SUS 304 Stainless steel
    Heat Preservation High temperature resistant,
    High chlorine acid b vinegar foam insulation materials
    Wind Cycling Way Centrifugal fan-broadband type forced air circulation
    Refrigeration Way Single stage compression refrigeration
    Refrigerater French Tecumseh
    Refrigerants R4O4A USA dupont environmental protection refrigerant(R23+R404)
    Condensing Way Air-cooled or water-cooled
    Heater Nickel chrome heating wire heater
    Humidifier Semi-closed steam and wet
    Water Suplying Way Automatic cycling water supply
    Standard Accessories 1 Observe window(double-deck cavity toughened glass),
    1 50mm test hole in the left,
    1 PL inner chamber lamp,
    2 clapboards,
    1 bag of wet and dry bulb,
    3 fuses,
    1 power line.
    Safety device Non- fuse-switch(compressor overload,
    refrigerant high low voltage,
    over-humidity and temperature protection,
    Protection switch,fuse stoppage warning system



    5. Product Picture

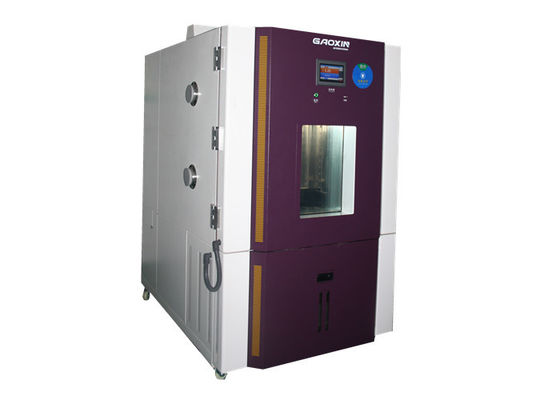

    1000L Lab High Low Temperature Humidity Rapid Change Tester Thermal Environmental Testing Chamber 0



    6. Company information



         Founded in 2004, Gaoxin is a recognized professional manufacturer in the materials testing industry.



    ●We offer various product catalogues in the industry from tensile testing machine to environmental testing machine, footwear quality tester and testing equipment for rubber, leather, ­package and luggage.



    ●Our customers are in involved in diversified market and industry like rubber industry, shoes production industry, energy and power generation, battery industry and electronics.



    ●We pay much attention to the innovation to develop technologies and solutions that ensure our  customers can overcome their testing challenges and stay at the forefront of their industry



    ●We don’t just sell products – we create partners- hips to ensure a high level of customer satisfaction and an open door for feedback
