    Product Details:

    Place of Origin: CHINA
    Brand Name: Gaoxin
    Certification: JIS K 6259、ASTM1149、 ISO1431、 GB/T7762、GB/T13642-92
    Model Number: GX-3000-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: negotiation
    Packaging Details: International wooden package
    Delivery Time: 15-20 working days
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Temperature Range: 0℃~ 60℃ Temperature Fluctuation: ±0.5℃ (At No-load)
    Temperature Uniformity: ±2℃ (At No-load) Humidity Range: ≤65%RH
    Ozone Concentration: Adjustable , 10-500pphm Ozone Concentration Accuracy: ±10% Pphm
    Ozone Air Flow Velocity: 8~16mm/s

    Rubber Automobile Leather Lab Aging Test Chamber Environmental Testing Chamber Ozone Aging Test Chamber

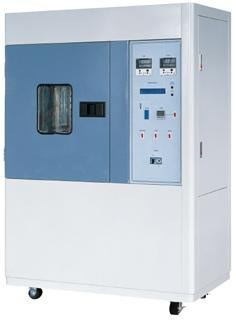

    1. Product Name:Ozone aging test chamber



    2. Product Model:GX-3000-F



    3. Product application:The tester is used for the ozone-resistance test of the rubber and rubber products



    4. Test principle:

    The ozone aging test chamber is applicable to the rubber products like vulcanized rubber and thermoplastic rubber, cable insulation sheath, etc. Exposed to the closed dark environment with constant ozone concentration and temperature, the sample is stretched statically or dynamically or alternately. After the preset testing time, check the rubber or rubber products for any fracture or other changes. Then evaluate the ozone-resistance performance of the sample and take effective measures to increase the sample lifetime.



    5. Test standard:JIS K 6259,ASTM1149, ISO1431, GB/T7762,GB/T13642-92



    6. Technical Parameter:

    Temperature range

    0℃~ 60℃

    Temperature fluctuation

    ±0.5℃  (At no-load)

    Temperature uniformity

    ±2℃    (At no-load)

    Humidity range

    ≤65%RH

    Ozone concentration

    Adjustable , 10-500pphm

    Ozone concentration accuracy

    ±10% pphm

    Ozone air flow velocity

    8~16mm/s

    Test time

    0 ~ 999 hour

    Air flow change

    20L~80L/min

    Sample shelf

    360° rotation

    Power

    380V/50Hz or specified by user

    Working room

    500×400×500(D×W×H)mm



    Rubber Automobile Leather Lab Aging Test Chamber Environmental Testing Chamber Ozone Aging Test Chamber
