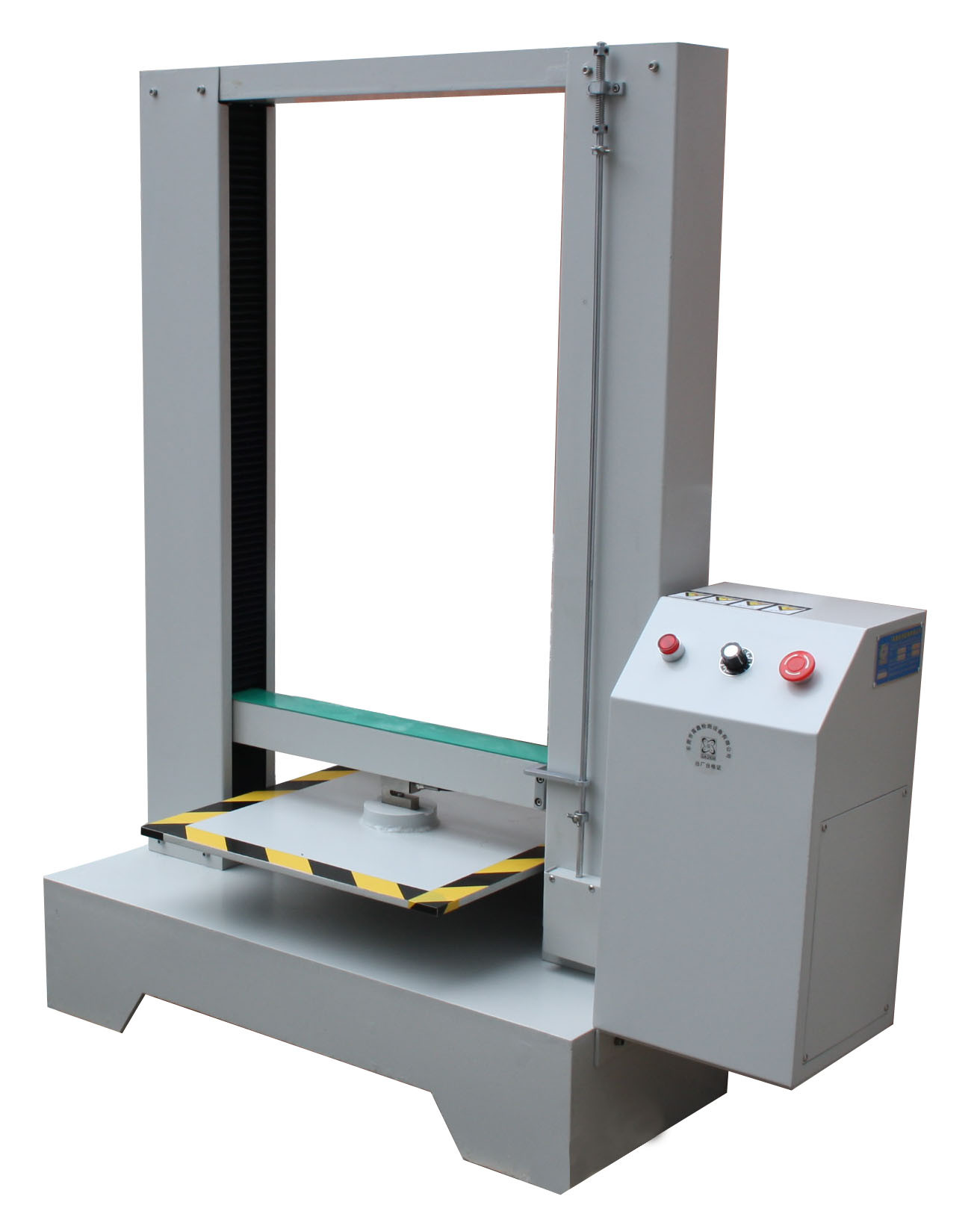

1Ton - 5Ton Paper Testing Equipments Carton Box Crush Compression Tester Machine

1Ton - 5Ton Paper Testing Equipments Carton Box Crush Compression Tester Machine

1Ton - 5Ton Paper Testing Equipments Carton Box Crush Compression Tester Machine

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Certification: ISO 2015
Model Number: GX-6010-S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Material: 304# Stainless Steel Color: Silver
Displayer: Computer Max. Pressure: 10Ton
Feature: High Capacity Usage: Test Compression Resistance Of Carton
Applicable Object: Carton, Other Packaging Box Speed: 10mm / Min

1Ton - 5Ton Paper Testing Equipments Carton Box Crush Compression Tester Machine





Description



Carton box compression tester is mainly used for testing compression resistance of corrugated carton

box and other material packaging box, determining loading capability and piling height of carton box.

The test can check the quality and compression strength of carton box, and provides basis to avoid

damage and lost caused by poor quality carton in the process of using, carrying, storage, piling up,

and transportation.

The carton box compression tester can be used to do stacking test, and the result can be taken as

important reference for factory to determine height of piling-up packaging box.



Test standard applied:

TAPP1-T804 JIS-Z0212 GB/T4857





Features



(1). Computer controlling system

(2). The tester is mainly used to check compression resistance of corrugated carton box.

(3). The tester can also do stacking test.

(4). Simple structure and easy to operate





Specifications



Model GX-6010-S
Capacity (optional) 50kg,100 kg, 200 kg, 500 kg
Unit (switchable) N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
Load resolution 1/10000
Load accuracy ±1%
Load induction Load cell
Force display LCD digital display
Printing function Serial number , peak value , average value , recordable
Load magnifying rate stepless
Test space 40×50×30 cm
Test speed 10 mm/min
Stroke resolution 0.001 mm
Motor AC Motor
Structure Seamless precise screw
Protection device Over-load, over-pressure, position limitation protection device
Weight 500 kg
Power supply 1∮,220v / 50HZ
