Printing Paper Testing Equipments Ink Discoloration Resistance Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GAOXIN |
| Certification: | ISO 2015 |
| Model Number: | GX-6021-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Function: | Ink Discoloration Resistance Testing | Display: | LED Display |
|---|---|---|---|
| Rubbing Load: | 4 Lb | Feature: | High Capacity, High Precision, Electric |
| Usage: | Test Adhesive Force Of Ink And Decoloration | Applicable Object: | Paper Packaging And Printing |
| Speed: | Adjustable | ||
| Highlight: | paper testing instruments,paper test equipment |
||
Product Description

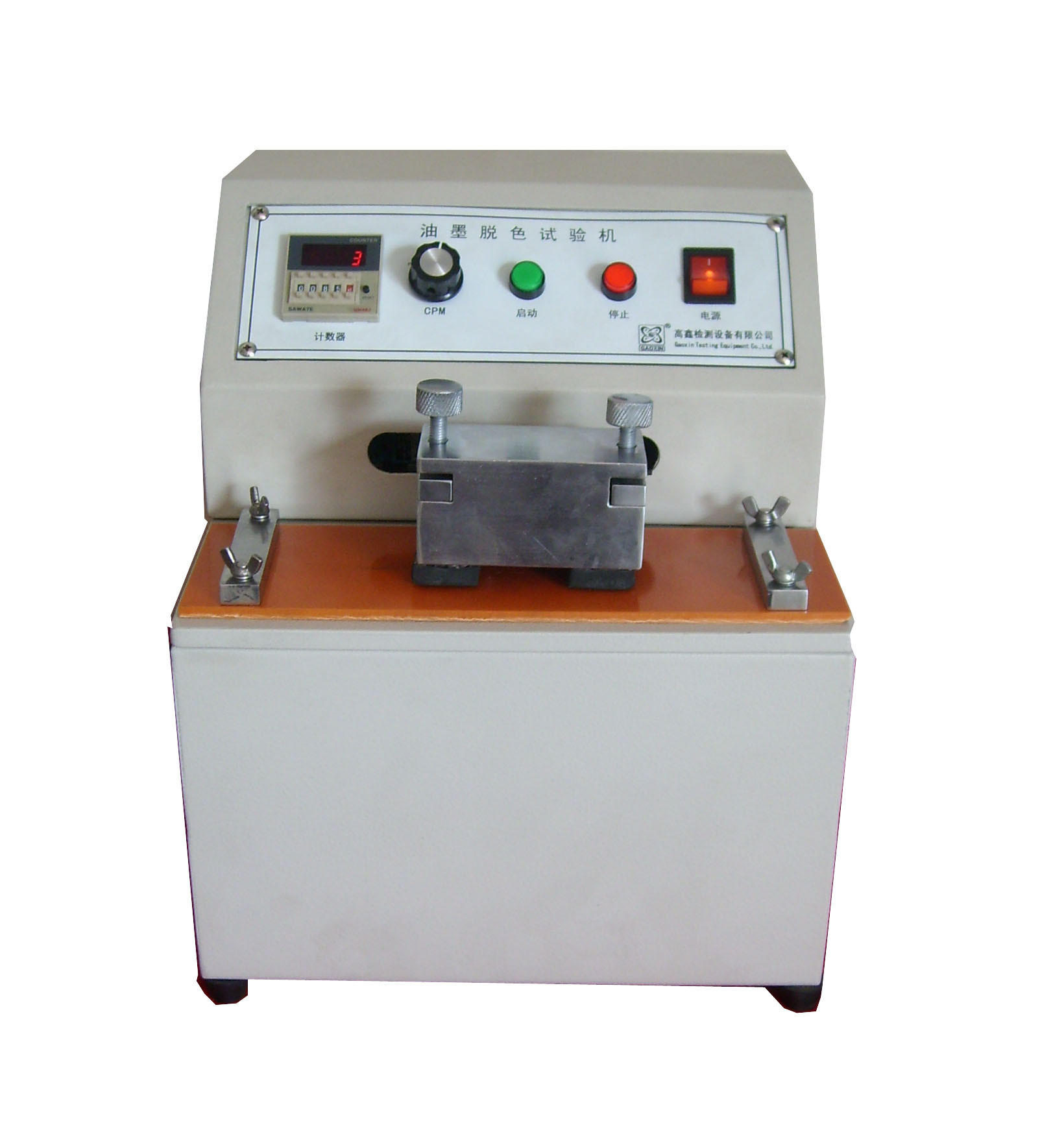

Printing Material Ink Discoloration Resistance Testing Machine for Paper Industry
Quick Details
| Alternative name | Ink Rub Tester For Printing |
| Function | Test bursting strength of paper board |
| Feature | manual type |
| Weight | 67kg |
| Volume | 62×51×57 cm |
| Test standard | ISO 2759 , GB/T 1539 |
Description
This machine is applicable to test abrasive resistance and decoloration for printing ink, printing material
and products. Through rubbing between specimen and white wood-free paper determines abrasive resistance and decoloration degree.
Friction block moves to and from by kind of radians regulated by TAPPI.
Features
- The ink rub tester is used to test adhesive force of ink in various direction, and determine thedecoloring degree.
- It is widely used in printing and packaging industry.Test abrasive resistance of printed layer and photosensitive coating of PS plate.
Specifications
| Model | GX-6021-B |
| Control method | micro-computer controller, LCD display screen |
| Specimen dimension | 100×200mm |
| rubbing speed | 4 choices (21/42/85/106c.p.m) |
| Rubing load | 4 lb(1.8kg) |
| Rubing stroke | 60mm |
| Frequency set | 0-9999 automatical stop |
| Test space | 50×200mm |
| Machine dimention | 300×325×300mm W×D×H |
| Weight |
20kg
|
| Power |
AC 220V 50 60HZ 2A |
