IEC 62133 Lithium Battery Safety Performance Test Equipment Laboratory Center
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | Gaoxin |
Certification: | ISO |
Model Number: | GX-ZT8008 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | Non-fumigation wooden box |
Delivery Time: | 30~45 working days after deposit received |
Payment Terms: | T/T |
Supply Ability: | According to the test equipments quantity you need |
Detail Information |
|||
Control Mode: | PLC Control Or Microcomputer Control | Drive Mode: | Hydraulic Drive Or Servo Motor |
---|---|---|---|
Type: | Vertical Type | Test Standard: | IEC 62133 |
High Light: | battery test equipment,battery testing machine |
Product Description
IEC 62133: 2012 Lithium Battery Safety Performance Test Equipment Laboratory Center
Description:
Battery safety performance test equipment center is mainly due to the test battery in the design, production, transportation, use and specific environmental conditions of the safety performance of the battery can be electrical safety tests and battery environmental testing. The electrical safety test includes the battery external short circuit test, free fall test, thermal abuse test, crush test, over-charging and forced discharge test, mechanical test(vibration test and shock test have added according to IEC 62133-2:2017 ), forced internal short-circuit test.
Battery environmental tests include short circuit, free fall, extrusion, acupuncture, impact, vibration, acceleration shock, thermal shock, low pressure, temperature cycling, and combustion jet test. The battery is equipped with a temperature-controlled short-circuit test chamber, the battery thermal shock test chamber,
For the test equipment list pe IEC 62133:2012, you can also download the file from the IECwebsite:https://www.iecee.org/dyn/www/f?p=106:49:0::::FSP_STD_ID:6515
Specific requirements and test(lithium systems) per IEC 62133
8.3.1 & 8.3.2 External short circuit
a) Requirement: Short-circuiting of the positive and negative terminals of the cell at ambient temperature shall not cause fire or explosion.
b) Acceptance criteria: No fire, no explosion.
c) Test equipment recommended: GX-6055-NT
d) Product picture:

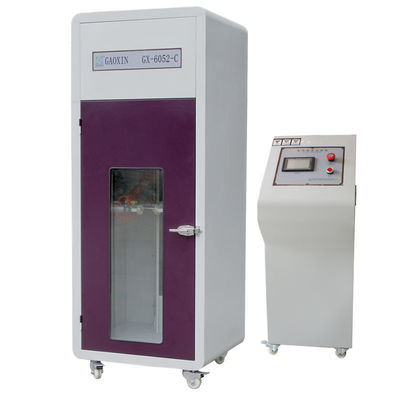

8.3.3 Free fall
a) Requirement: Dropping a cell or battery (for example, from a bench top) shall not cause fire or explosion.
b) Acceptance criteria: No fire, no explosion.
c) Test equipment recommended: GX-6052-C
d) Product picture:
8.3.4 Thermal abuse(cells)
a) Requirement: An extremely high temperature shall not cause fire or explosion.
b) Acceptance criteria: No fire, no explosion.
c) Test equipment recommended: GX-3020-B
d) Product picture:
8.3.5 Crush(cells)
a) Requirement: the Severe crushing of a cell shall not cause fire or explosion.
b) Acceptance criteria: No fire, no explosion.
c) Test equipment recommended: GX-5067-C
d) Product picture:
8.3.6 Over-charging of battery
a) Requirement: Charging for longer periods than specified by the manufacturer shall not cause fire or explosion.
b) Acceptance criteria: No fire, no explosion.
c) Test equipment recommended: GX-FB
8.3.7 Forced discharge(cells)
a) Requirement: A cell in a multi-cell application shall withstand polarity reversal without causing fire or explosion.
b) Acceptance criteria: No fire, no explosion.
c) Test equipment recommended: GX-FB
d) Product picture:
8.3.8 Transport tests
Regulations concerning international transport of lithium ion batteries are based on the UN Recommendations on the Transport of Dangerous Goods. Testing requirements are defined in the UN Manual of Tests & Criteria. As regulations are subject to change, the latest editions should be consulted. For reference, transportation tests are also given in IEC 62281. Manufacturer’s documentation can be provided to demonstrate compliance.
But according to the latest IEC 62133:2017 test standard, vibration test and shock test have added in the new standard. For more details, please check in the IEC website:https://domino.iec.ch/publication/32662
8.3.9 Design evaluation - Forced internal short circuit (cells)
a) Requirement: Forced internal short circuit test for cylindrical cells and prismatic cells shall not cause the fire. Cell manufacturers shall keep a record to meet the requirements. A new design evaluation shall be done by the cell manufacturer after testing is conducted by the cell manufacturer or a third party test house.
This country-specific test which is only applicable to France, Japan, Korea and Switzerland and is not required on polymer cells.
b) Acceptance criteria: No fire. (Record the pressure when short-circuit occurred if there was no fire.)
c) Test equipment recommended: GX-6055-C
d) Product picture:
