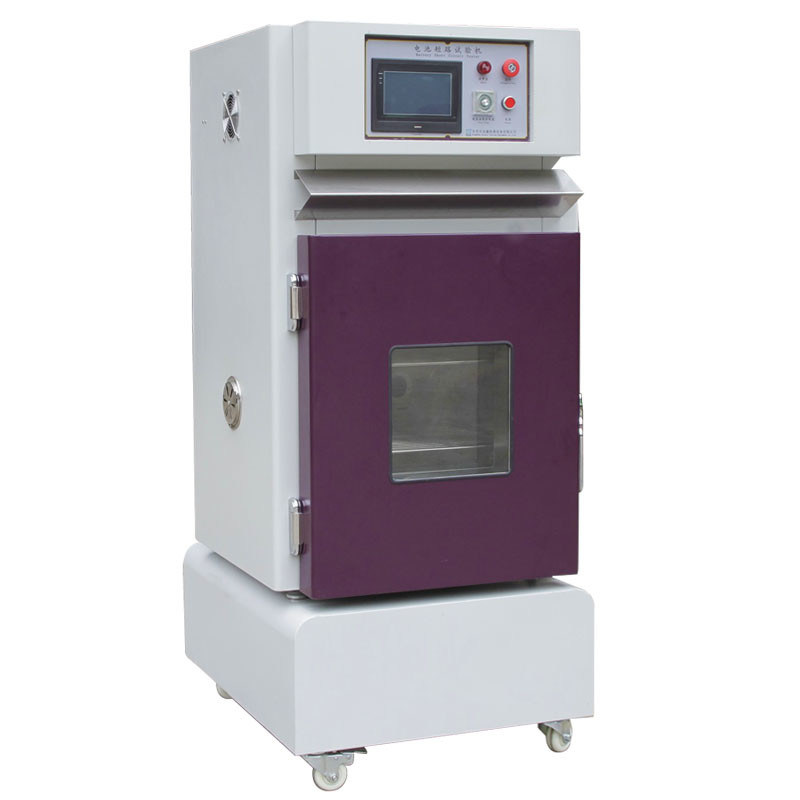

• High Temperature Short Circuit Battery Testing Equipment For IEC 62133 UN38.3
High Temperature Short Circuit Battery Testing Equipment For IEC 62133 UN38.3

High Temperature Short Circuit Battery Testing Equipment For IEC 62133 UN38.3

Product Details:

Place of Origin: CHINA
Brand Name: GAOXIN
Certification: CE
Model Number: GX-6055-NT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Non-fumigation wooden box
Delivery Time: 25 working days after deposit received
Payment Terms: T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Max. Short-circuit Current: 1000A Internal Resistance: 80±20 MΩ
Contol Mode: PLC+Wireless Remote Test Chamber: 500*500*500
Temperature Range: RT + 10~100 ℃ Data Acquisition: Current, Voltage, Temperature
Data Output: USB Interface
High Light:

battery test equipment


battery testing machine

Product Description

High Temperature Short Circuit Battery Testing Equipment for IEC 62133 UN38.3




Short-circuiting of the positive and negative terminals of the cell at ambient temperature shall not cause fire or explosion.



Test Standard:


IEC 62133-2012, UN38.3, UL 2054, UL 1642,  IEC 62281-2004,  IEC 60086-4...


Technical Parameter:



All-in-one structure, venting and pressure relief device

Voltage,temperature, current collection External connected multi - channel data acquisition instrument or PLC data collection module, Channels are extended in Nx4 mode
test chamber temperature Range RT + 10~100 ℃
Heat preservation material Efficient compression glass wool or Rigid polyurethane foam cotton
Temperature control accurcey 0.1℃
Temperature uniformity ± 2 ℃
Temperature luctuation ± 0.5 ℃
Explosion inner box size 500*500*500mm, 400*400*400mm, 500*600*500mm or customized
Short circuit Mode

RT Short circuit

high temperature short circuit

short circuit protection

high-low temperature short circuit

Operating ambient temperature temperature -10℃~100℃, humidity 10~90% no condensation
Power AC 220V± 10%, 50/60Hz, 380V ± 1%
Gas consumption 0.5~0.8MPa
Working voltage AC 220V 50Hz-60Hz
Impact voltage AC 1kv/1.2-50μs(max)1min
Maximum testing voltage 100V~1000V
Dc response time ≤5μs
Maximum short circuit current 1000A
The device interior resistance 80±20mΩ
Action time Response time / release time ≯30ms
Performance characteristic

Cold and voltage ≯66%Us

Cold release voltage ≯30%Us,≮5%Us

Operating Mode The remote control within 7 meters without barrier
Explosion-proof case material

Inner case: SUS# 304 stainless steel sheet

Outer case: Cold-roll steel sheet with paint

Cotrol Mode PLC touch screen + wireless Remote
Data acquisition function

Current, voltage, Temperature acquisition


Observation window, Exhaust vent, Pressure relief vent

Data Output Can be output by USB interface


For more detail information please contact with us
