Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

    • Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
    • Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
    • Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
  • Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: GAOIXN
    Certification: ISO 9001:2008; QS-9000; CE
    Model Number: GX-8001-M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 15 work days
    Payment Terms: FOB Shenzhen, L/C, T/T, Western Union,
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Power: Servo Type: Universal Tensile Testing Machine
    Sensor: Celtron Load Cell Capacity: 500, 1000, 2000, 5000 Kg
    Accuracy: ±0.5% Test Speed: 25-500mm/min

    Flexible Easy Operation Double Column Tensile Testing Machine, Tensile Tester

     Description:

    Tensile testing equipment with Servo motor is widely used in controlling the quality; Rubber, Plastics;
    metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production;
    textile fiber; wire and cable; packaging materials etc.
    Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.


    Specifications:



    Model

    GX-8001-M

    Maximum load

     500, 1000, 2000, 5000 kg (optional)

    Accurate

    1 grade

    Measuring accuracy

    The value ±1% / the value±0.5%

    Tester resolution

    Max load 1/100000, constant the resolution

    Effective testing width

    400mm (or can be widened as customers requirement )

    Effective tensile space

    650,800,1000mm (or can be increased the height according to customers requirement)

     Testing speed

    From 0.5 to 1000mm/min

    Unit

    kgf, gf, lbf, N, kN, Mpa, pa(optional)

    Accruacy of displacement measurement

    Tolerance: ±0.5%

    Accuracy of measured deformation

    Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

    Safety

    Electronic-limit protection

    Testing plat form moving  device

    Fast /slow( two speeds to control) ,can jog

    Return Back

    Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

    Overload protection

     Overload 10%, automatic protection

    Fixture

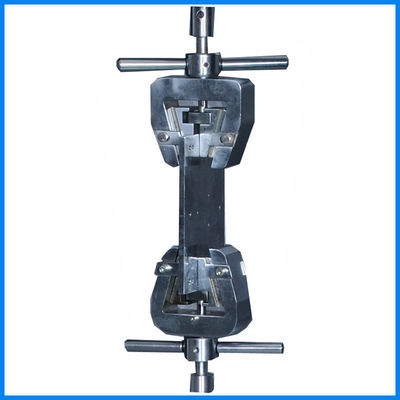

    One set of tensile clamp

    Volume

    800*1000*2500mm (L*W*H)

    Motor

    servo motor and drive

    Power

    220V,50HZ or as the requirement

    Wattage

    0.66kW (different demand of force with different motor)

    Weight

     300 Kg(approx)




    Applicable industry:

    Tensile test machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.







    Features of Universal Testing Machine

    • Dual Column, Stand Alone System with 50kN Maximum Capacity
    • Ergonomic Design with many Advanced Features
    • Flexible and Modular Design for Easy Expansion
    • Precision reducers, ball screws with low noise and transmission losses
    • The seal plate mining anode hardening protects the ball screw and increase service life and precision of the instrument.
    • Load cell has memory lock function which memorizes various parameters.
    • Plug and play load cell.
    • Jog control and easy operation
    • Many relevant tests can be performed with optional grips and extensometer of fixtures.



    Pictures:

    Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

    Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile TesterFlexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

    Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester



    Company introduction:



    Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

    Our advantages:

    (1) Speciality in testing equipment

    (2) Various products to choose from

    (3) Accept customization

    (4) Excellent after-sale service



    Our products mainly divided into:



    1. environment simulation test chamber

    2. battery safety testing machine

    3. Footwear and leather testers;

    4, rubber and plastic tester

    5, tensile tester

    6. paper and packaging tester

    7. cable tester



    After sale service:



    1. operation manual and video, till user can operate the testing machine masterly.

    2. one year warranty

    3. free operation training.

    4. professional engineer to solve any problems or confusion about the test equipment.
