Economical Universal Testing Machine Tensile Test Leather Material
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001:2008 |
| Model Number: | GX-8003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | International strong wooden package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per monh |
|
Detail Information |
|||
| Capacity: | 5-300kg | Unit Exchange: | Kgf ,lbf ,N, KN, Kpa, Mpa |
|---|---|---|---|
| Accuracy Of Load: | ± 1% | Application: | Leather ,material |
| Load Resolution: | 1/10，000 | Max. Tensile Space: | 800mm |
| Test Speed Range: | 25～500mm/min | Speed Control: | Knob |
| Power: | 220V/50HZ Or Specified By User | ||
| High Light: | Economical Universal Testing Machine Tensile Test,Leather Universal Testing Machine Tensile Test,Economical Universal Tensile Testing Machine |
||
Product Description
Economical Leather Material Tensile Testing Equipment Tensile Tester Machine
1. Leather Material Tensile/ Flexing/Tearing Strength Testing Equipment/Machine
Usage: Tensile test, flexing test, tearing test and so on.
Standards: Most internation standards including ISO, ASTM and so on.
Application: Leather Materials
A tensile test is performed to determine the tensile properties of a material or component. The test sample's deformation is used to characterize its ductility or brittleness as well as important characteristics such as tensile strength, yield point, elastic limit, percent elongation, elastic modulus and toughness.
2. Technical Parameter(accept customization)
|
Load range |
Maximum of 300kg |
|
Unit exchange |
kgf,lbf,N |
|
Accuracy of load |
± 1% |
|
Load resolution |
1/10,000 |
|
Max. tensile space |
800mm (not including fixture) |
|
Displacement resolution |
0.01mm |
|
Test speed range |
25～500mm/min |
|
Speed Control |
Knob |
|
Stop mode |
Specimen damage or set lower and upper data limit |
|
Items for printing |
Data; test times, largest force value, average value |
|
Weight |
80kg |
|
Power |
220V/50HZ or specified by user |

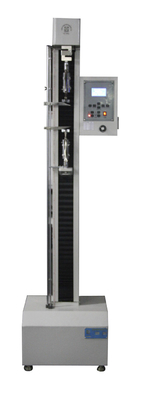

3. Product Picture
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
