Leather Universal Material Testing Machine , ASTM Tensile Strength Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001:2008 |
| Model Number: | GX-8003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | International strong wooden package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per monh |
|
Detail Information |
|||
| Capacity: | 5-300kg | Unit Exchange: | Kgf ,lbf ,N, KN, Kpa, Mpa |
|---|---|---|---|
| Accuracy Of Load: | ± 1% | Application: | Leather ,material |
| High Light: | Leather Universal Material Testing Machine,ASTM Tensile Strength Equipment,ASTM Universal Material Testing Machine |
||
Product Description
Economical Leather Material Tensile Testing Equipment Tensile Tester Machine
1. Leather Material Tensile/ Flexing/Tearing Strength Testing Equipment/Machine
Usage: Tensile test, flexing test, tearing test and so on.
Standards: Most internation standards including ISO, ASTM and so on.
Application: Leather Materials
2. Technical Parameter(accept customization)
|
Load range |
Maximum of 300kg |
|
Unit exchange |
kgf,lbf,N |
|
Accuracy of load |
± 1% |
|
Load resolution |
1/10,000 |
|
Max. tensile space |
800mm (not including fixture) |
|
Displacement resolution |
0.01mm |
|
Test speed range |
25～500mm/min |
|
Speed Control |
Knob |
|
Stop mode |
Specimen damage or set lower and upper data limit |
|
Items for printing |
Data; test times, largest force value, average value |
|
Weight |
80kg |
|
Power |
220V/50HZ or specified by user |
A tensile tester, also known as a pull tester or univeral testing machine (UTM), is an electromechanical test system that applies a tensile (pull) force to a material to determine the tensile strength and deformation behavior until break.
A typical tensile testing machine consists of a load cell, crosshead, extensometer, specimen grips, electronics and a drive system. It is controlled by testing software used to define machine and safety settings and store test parameters specified by testing standards such as ASTM and ISO. The amount of force applied to the machine and the elongation of the specimen are recorded throughout the test. Measuring the force required to stretch or elongate a material to the point of permanent deformation or break helps designers and manufacturers predict how materials will perform when implemented for their intended purpose.

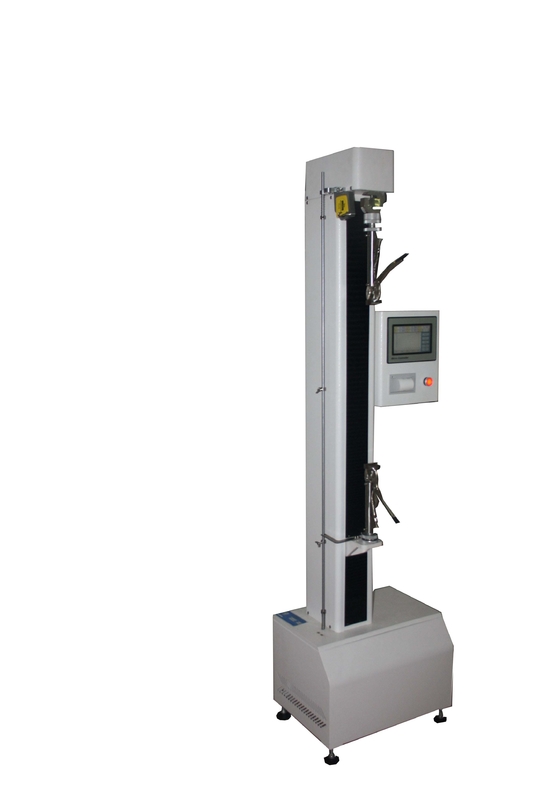

3. Product Picture
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
