10kn 100kn Universal Tensile Strength Tester ISO Standards For Wires
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001:2008 |
| Model Number: | GX-8002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | International strong wooden package |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per monh |
|
Detail Information |
|||
| Capacity: | 2kN (option, Can Customize) | Unit Exchange: | Kgf ,lbf ,N, KN, Kpa, Mpa |
|---|---|---|---|
| Effective Measuring Range: | 0.2%~100%(1grade) | Maximum Stroke: | 600mm(can Be Increased The Height According To Customers Requirement) |
| Testing Speed: | 0.5~500mm/min | Testing Platform Moving Device: | Fast /slow Two Speeds To Control, Can Jog |
| Power System: | Panasonic AC Servo Motor + Driver | ||
| High Light: | 10kn Universal Tensile Strength Tester,Wires Universal Tensile Strength Tester,ISO Tensile Strength Measurement Machine |
||
Product Description
10kn 100kn Tensile Strength Tester Universal Tensile Testing Machine
1. Cable/Wires Tensile Testing Machine/Equipment
Usage: Tensile test, peeling test, tearing test and so on.
Standards: Most internation standards including ISO, ASTM and so on.
Application: Cable or wires
2. Technical Parameter(accept customization)
|
Model |
GX-8002-C |
|
Max load |
2kN (option, can customize) |
|
Accurate grade |
1 grade |
|
Effective measuring range |
0.2%~100%(1grade) |
|
Measuring accuracy |
the value ±1% |
|
Tester resolution |
Max load 1/100,000, constant the resolution |
|
Load sensor |
Basic configuration, sensor(max load), one Extended configuration, can add more sensors |
|
Effective working space |
600mm(can be increased the height according to customers requirement) |
|
Range of testing speed |
0.5~500mm/min |
|
safety |
Electronic-limit protection |
|
Testing platform moving device |
Fast /slow two speeds to control, can jog |
|
Return back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%,automatic protection |
|
fixture |
A set of fixture |
|
Machine size |
400×500×1300mmm (length*width*height) |
|
Power system |
Panasonic AC Servo Motor + Driver |
|
Power supply |
220V,50HZ or specified by user |
|
Power |
0.66kW(depending on different demand of force, using different motor) |
|
Net weight |
(appr)80 kg |

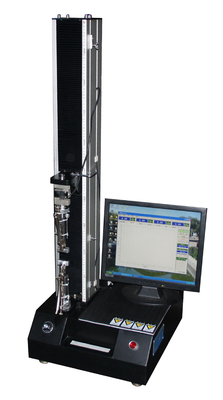

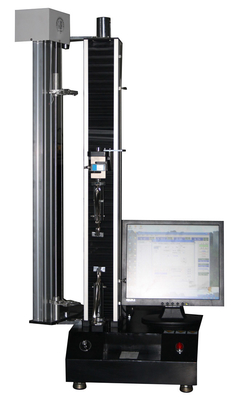

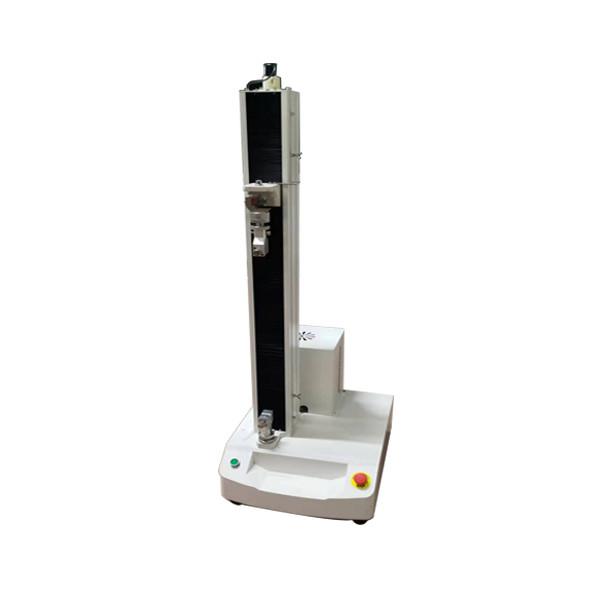

3. Product Picture
Related Tensile Testing Machine:
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
