Battery Pack System GB / T31467 Battery Testing Equipment With Computer Remote Control

Battery Pack System GB / T31467 Battery Testing Equipment With Computer Remote Control

    • Battery Pack System GB / T31467 Battery Testing Equipment With Computer Remote Control
    • Battery Pack System GB / T31467 Battery Testing Equipment With Computer Remote Control
    • Battery Pack System GB / T31467 Battery Testing Equipment With Computer Remote Control
  • Battery Pack System GB / T31467 Battery Testing Equipment With Computer Remote Control

    Product Details:

    Place of Origin: CHINA
    Brand Name: GAOXIN
    Model Number: GX-5718

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 40 working days
    Payment Terms: T/T, L/C
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Application: Battery, Coin Cell, Pack Control Model: PLC Remote Control, Computer Remote Control
    Operation Mode: Program Mode, Setting Mode Drive Mode: Servo Motor
    Display: Touch Display Language: English
    Config: One Set PC

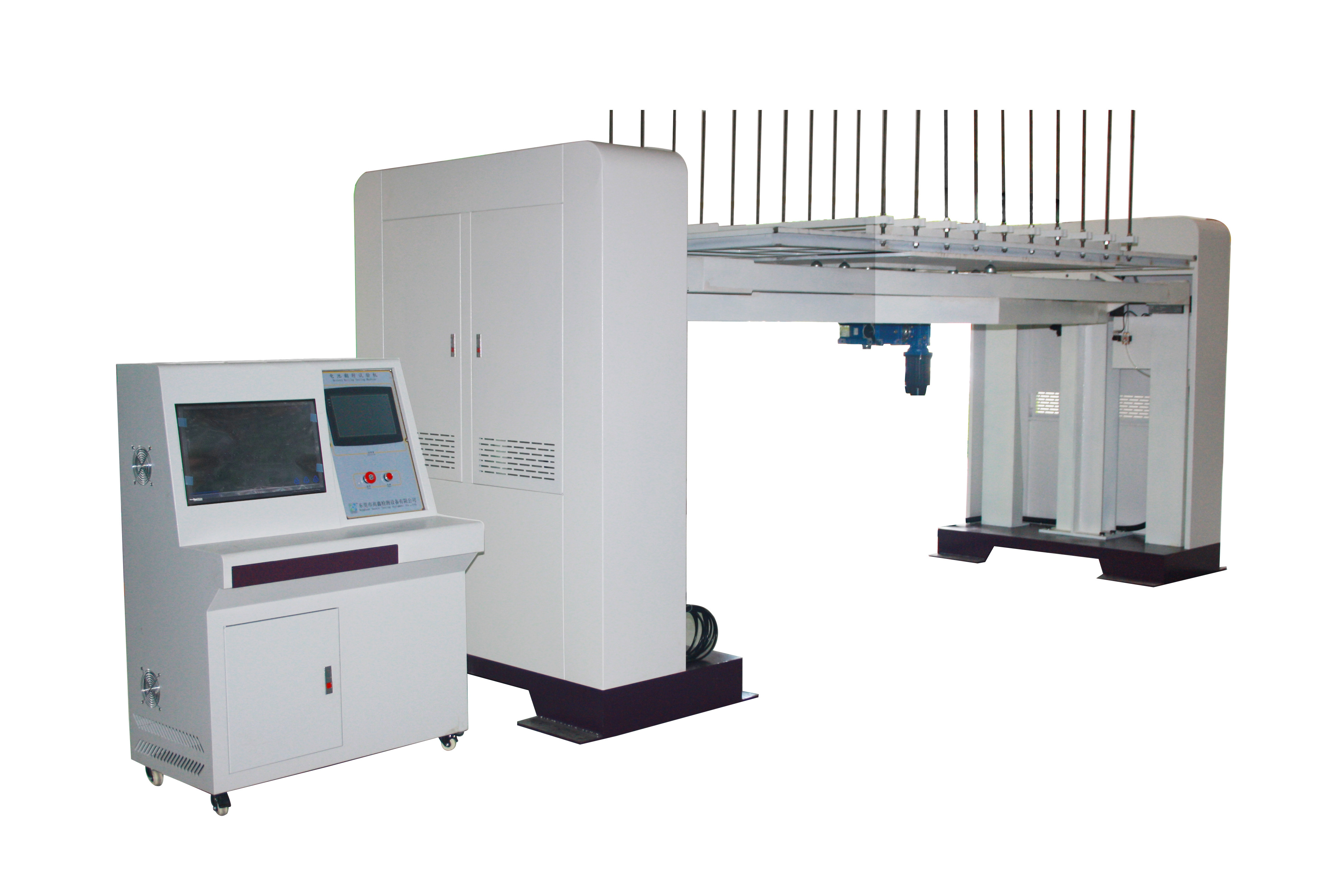

    Battery Pack System GB / T31467 Computer Remote Control Battery Pack Overturn Test Machine



    Product description:

    Battery flip test machine to simulate the battery pack from around the Y-axis or X-axis, GB / T31467.3-2015 battery pack flip test machine to a certain speed and angle of rotation of the battery a week, observe 2h, battery pack or system without electrolytic leakage, No rupture, fire or explosion as qualified. Battery flip test machine test object for the battery pack or system.

    Operating mode: program mode, setting mode

    Drive: servo motor drive to meet the 550kg battery pack flip test

    Control: close touch screen PLC control + remote computer control (within 10 meters)

    Specification:

    Display Size: 10-inch touch screen;

    Touch screen interface: Chinese interface;

    Equipment Configuration Computer: Equipment configuration 1 test desktop

    Program Settings: You can set the flip speed, flip time, flip angle, the number of flip weeks, the middle set aside time, setting range: the maximum range of the upper and lower limits;

    Turn the total angle of 0 ~ 360 °, continuously adjustable

    Rotation direction: X axis, Y axis automatically converted

    Flip platform speed: Flip Taiwan rotation speed of 1 ° / s ~ 12 ° / s adjustable, rotating shaft at the installation of angle dial;

    Accuracy requirements: Control accuracy: flip speed accuracy control within ± 1 ° / s; flip angle control within 0.5 °;

    Time accuracy: not less than ± 0.1%

    Angle resolution: ≤0.5 °

    Speed resolution: ≤0.5 °/s

    Flip angle: 90 °

    Recording function: custom data recorder,

    Timing range: 0 ~ 99 hours

    Time display: display time, date, adjustable

    Memory: with battery protection RAM, can save the set value, sample value and sampling time
