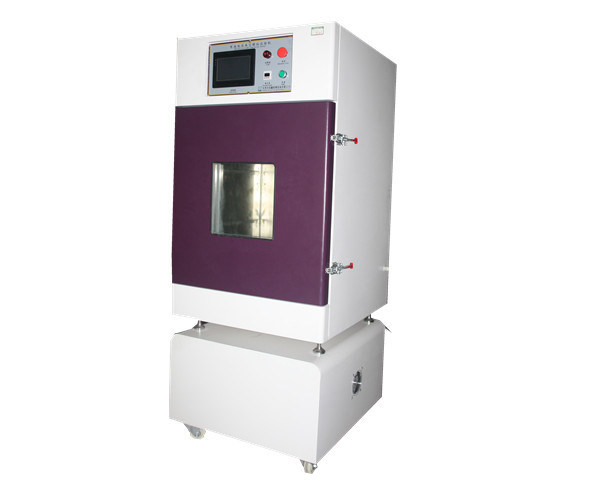

Low Pressure Simulation Test Chamber 11.6Kpa UN 38.3 Battery Testing Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GAOXIN |
| Certification: | CE |
| Model Number: | GX-3020-ZL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Material: | Stainless Steel | Application: | Battery, Cell Pack |
|---|---|---|---|
| Control Mode: | PLC Remote Control Micro Computer Control | Supply Power: | AC380V, 50HZ, 20A |
| High Light: | battery test equipment,battery testing machine |
||
Product Description
Battery Low-Pressure Simulation Test Chamber for UN 38.3 Battery Test
Specification:
Specimen weight: 600kg (or according to the actual weight of custom)
Specimen size: 2500mm * 1500mm * 600mm (or according to the actual weight of custom)
Inner box material: high grade stainless steel
Outer carton material: cold plate by advanced spray processing
Pressure range: 0.5 ~ 101kPa
Observation window: Use multiple layers of explosion-proof glass
Control mode: PLC touch screen man-machine interface control
Test time: 0-999999S can be set freely
Electrical overload protection device: When the device appears such as leakage, over-voltage, over-current protection will automatically cut off the power;
Pressure fluctuations: ≤ 5%;
Equipment power supply: AC380V, 50HZ, 20A
Power: 8kW
