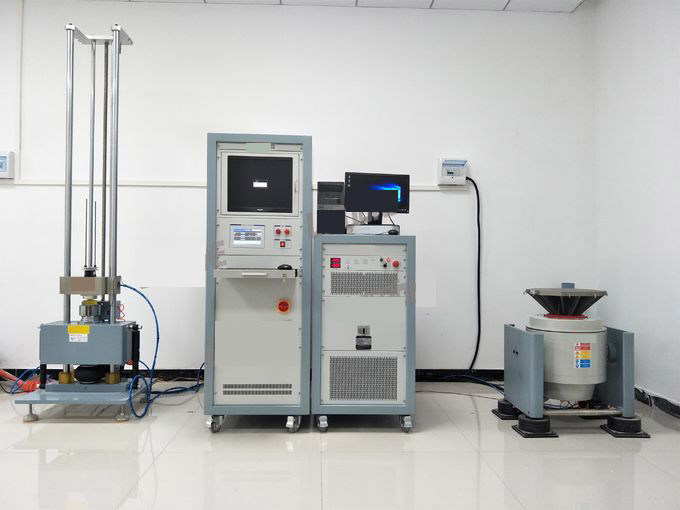

Battery Testing Equipment Electromagnetic Vibration Shaker System UN38.3
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Packaging Details:||Non-fumigation wooden box|
|Delivery Time:||30 working days|
|Supply Ability:||10 set/batch|
|Function:||Vibration Test||Control Way:||Computer Control|
|Frequency Range:||DC～4000 Hz||Maximum Speed:||1.8m/s|
|Max Load:||120kg||Demension:||750*560*670mm Vertical Table|
|Net Weight:||Aprrox 460kg|
battery test equipment,
battery testing machine
7-200Hz 8g 1.6mm Battery Testing Machine , Electromagnetic Vibration Shaker System UN38.3
1. Product Name: Battery Vibration Testing Machine
2. Model No.:GX-600-ZD
3. equipment usage and application: Vibration environment and impact environment test
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test.
Electromagnetic vibration tester completely according to the standard design battery related testing, simulation, under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
Vibration test of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.
GB/T 31486-2015 <Electrical performance requirements and test methods for traction battery of electric vehicle> Test requirements
4. vibration type pause formula and vibration generator structure:
1. Test type: sine vibration; Random vibration;
2. Frequency response range:2-3000Hz
3. The formula:A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2
6. equipment composition:
|ZD600-51 Electromagnetic vibration generator||1 piece|
|BL-600 Cooling fan (including the silencer)||1 piece|
|Vertical expansion table 400mm*400mm||1 piece|
||Digital switching power amplifier|
|SA-6 digital switch power amplifier||1 piece|
||Digital vibration controller|
|Digital vibration controller||1 piece|
|The system acceleration sensor||1pcs|
|Control software installation CD||1set|
|Extension cable, duct||1set|
|Instructions, inspection reports, certificate of approval, maintenance manuals, etc||1set|
|Attached special tools||1set|
|Vibration compressive bar/layering fixture||1set|
|Computer desk||1 piece|
