• Battery External Short Circuit Tester Battery Safety Testing Equipment
Battery External Short Circuit Tester Battery Safety Testing Equipment

Battery External Short Circuit Tester Battery Safety Testing Equipment

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Model Number: GX-6055-NT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Usage: Battery Cell Batteries, Module, Pack Extenal Short Circuit Test Short Circuit Current Wire: 1000A, 3000A, 5000A, 10000A, 15000A, 20000A
Feature: Real-time Monitoring Voltage, Current, Battery Temperature Changes Control Mode: PLC Touch Screen+Wireless Remote
Temperature Control Range: RT+10~100℃ Test Chamber Internal Dimension: W500xH600x500mm
High Light:

battery testing instruments

,

battery testing machine

Product Description

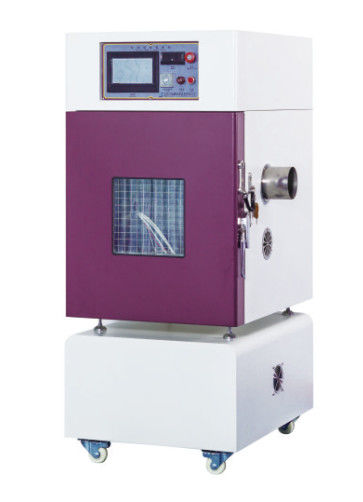

Battery External Short Circuit Tester Battery Safety Testing Equipment

GX-6055-NT is special designed for lithium ion external short circuit test. its temperature controled

  • The internal resistance wires for optional 5mΩ, 10mΩ, 20mΩ, 30mΩ, 40mΩ, 80±20mΩ etc......
  • Temperature control range: RT+10~100℃
  • The internal resistance wires max current 1000A
  • PLC touch screen control, setting test condition and display
  • Real-time monitoring battery voltage, current, temperature changes, display in curve and value
  • With USB communication interface, it able to save and export test data and curve, you able to check them on the computer and print out
  • With 7 meter no barrier safety distance remote control
  • Test chamber internal dimension: W500xH600x500mm
  • Test Chamber made of SUS 304 stainless steel, explosion proof
  • With exhaust fan and pressure relief port in case of battery fire or explosion
  • 2 X stainless steel shelves for sample placing
  • 2 X cable hole for test wire feed through
  • With clear inspection window. explosion-proof
  • 3000A, 5000A, 10000A, 15000A, 20000A internal resistance wire available
