12KW AC380V Battery Thermal Abuse Testing Machine IEC 62133 UN38.3

12KW AC380V Battery Thermal Abuse Testing Machine IEC 62133 UN38.3

Product Details:

Place of Origin: China
Brand Name: GAOXIN
Certification: ISO
Model Number: GX-3020-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International Standard Wooden Package
Delivery Time: 15-20 working days
Payment Terms: T/T, FOB/CIF Shenzhen
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Model: GX-3020-B Product Name: Thermal Abuse Testing Machine
Temperature Range: RT+10~200℃ Control Method: PLC Touch Screen
Capacity: 1000L Usage: Battery Pack Thermal Abuse Test
High Light:

AC380V Thermal Abuse Testing Machine

,

Battery Thermal Abuse Testing Machine

,

12KW Battery Testing Equipment

Product Description

12KW AC380V Battery Thermal Abuse Testing Machine IEC 62133 UN38.3

Battery Thermal Abuse Testing Machine





This machine can be used for battery Thermal abuse and stress test of mold shell at high temperature.


1. Product Name: Battery thermal abuse testing machine

2. Product Model: GX-3020-B


3. Description:



This tester with built-in forced air circulation, by circular motor drives the rotor running through a electric heater, hot air from air duct to the oven interior, thus reducing energy loss and uniformity of temperature in the oven, and when the door open and close action cause disturbance, it can respond quickly to supply air circulation system operation status, temperature, runs in and out of port, the wind path smooth circulation, breath fast. avoid too high spontaneous combustion explosion of combustible gas concentration.



4. Technical Parameter:



Temperature range Room temperature (or ambient temperature)~ 200℃, insulation layer thickness 100mm
Temperature display accuracy ±0.1℃
Temperature uniformity ±2℃
Accuracy of temperature regulation ±0.5℃
Heating rate (5±2) ℃/min (non-linear no-load)
Temperature overshoot range (stability) Do the thermal abouse test. After reaching 130 degrees, the overshoot temperature is ≦2℃
Inner box size 1000*1000*1000 mm (width * height * depth)
Outer box size 130*150*180CM (length, width and height, including the height of the relief hood on the top)
Temperature controller Programmable touch screen controller
The inner case SUS#304 first-class stainless steel
Carton material Cold rolled steel plate paint treatment
Heat preservation material highly efficient compressed glass wool
Observation window double-layer hollow tempered glass observation window, size 320*320*38 mm
Explosion-proof window design Located on the upper part of the equipment.
The size of explosion-proof window 900*900mm, that is, the whole top of the box is explosion-proof design.
Explosion-proof door lock Stainless steel explosion-proof door lock, and equipped with a chain lock for secondary protection
Net weight 350 kg
The equipment USES power AC380V± 10%, 50Hz, 30A
The equipment power 12KW

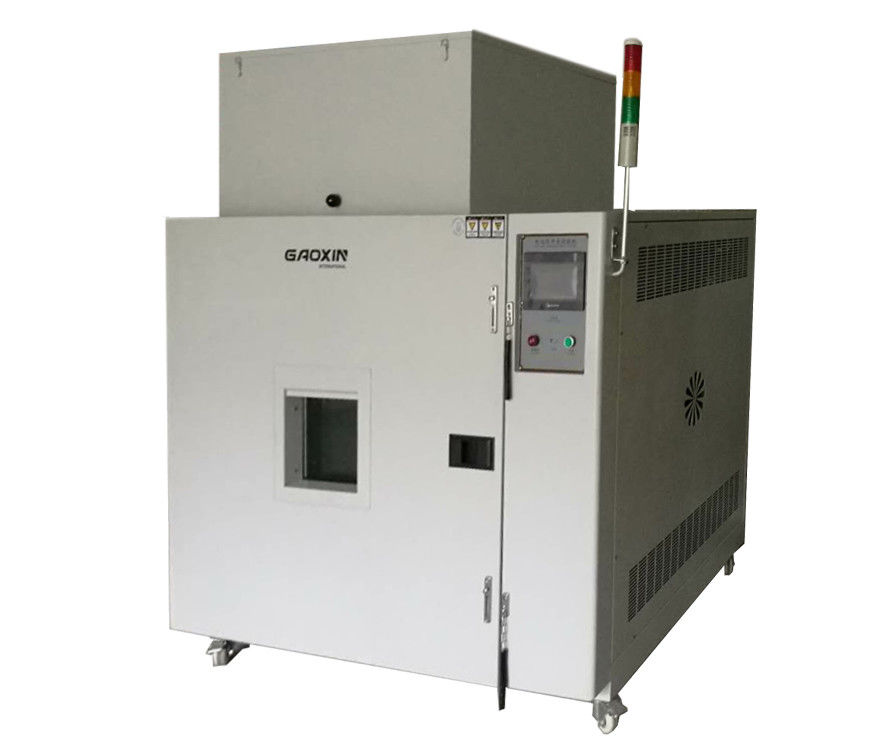

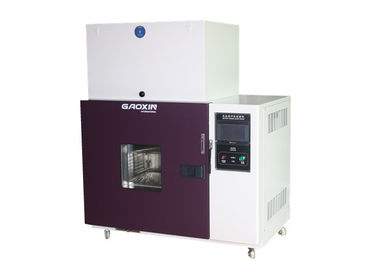

5.Picture

12KW AC380V Battery Thermal Abuse Testing Machine IEC 62133 UN38.3 0
