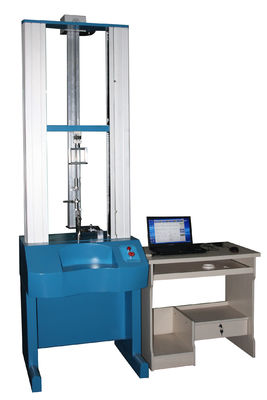

• 2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment
  • 2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment
  • 2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment
  • 2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment
2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment

2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: GAOIXN
Certification: ISO 9001:2008; QS-9000; CE
Model Number: GX-8001-M

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 work days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Power: Servo Type: Universal Tensile Testing Machine
Sensor: Celtron Load Cell Capacity: 500, 1000, 2000, 3000, 5000kg
Accuracy: ±0.5% Test Speed: 0.01-500mm/min
Tester Resolution: Max Load 1/200000
High Light:

UTM Universal Testing Machine

,

2KN Universal Testing Machine

,

Building Materials UTM Machine

Product Description

UTM Laboratory Customize Industrial Material Universal Testing Machine

Specifications:

Model

GX-8001-M

Maximum load

2kN,5kN,10kN,20kN (optional)

Accurate

1 grade

Measuring accuracy

The value ±1% / the value±0.5%

Tester resolution

Max load 1/100000, constant the resolution

Effective testing width

400mm (or can be widened as customers requirement )

Effective tensile space

650,800,1000mm (or can be increased the height according to customers requirement)

 Testing speed

From 0.5 to 1000mm/min

Unit

kgf, gf, lbf, N, kN, Mpa, pa(optional)

Accruacy of displacement measurement

Tolerance: ±0.5%

Accuracy of measured deformation

Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

Safety

Electronic-limit protection

Testing plat form moving  device

Fast /slow( two speeds to control) ,can jog

Return Back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

 Overload 10%, automatic protection

Fixture

One set of tensile clamp

Volume

800*1000*2500mm (L*W*H)

Motor

servo motor and drive

Power

220V,50HZ or as the requirement

Wattage

0.66kW (different demand of force with different motor)

Weight

 300 Kg(approx)


Description:

A universal testing machine (UTM), also known as a universal tester,materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. The "universal" part of the name reflects that it can perform many standard tensile and compression tests on materials, components, and structures (in other words, that it is versatile).

Applicable industry:

Universal testing machine (UTM) is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.

2KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment 02KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment 12KN Laboratory UTM Universal Testing Machine For Building Materials for the Tensile Testing Equipment 2
