SUS201 Interior Explosion Proof Battery Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001 |
| Model Number: | GX-FB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15-20 working days |
| Payment Terms: | FOB Shenzhen, T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Function: | Explosion Proof Tank | Each Testing Tank: | 500*500*500mm（W*D*H）, Or Customized |
|---|---|---|---|
| Outward Box: | A3 Steel Board | Interior Box: | SUS#201 Stainless Steel |
| High Light: | SUS201 Interior Battery Testing Machine,Explosion Proof Battery Testing Machine,SUS201 Interior Battery Tester |
||
Product Description
SUS201 Interior Battery Explosion Proof Tank 500x500x500mm battery and cell test equipment
The Machine Can Customizable Battery Lab Equipment Over Charge and Discharge Tester Explosion Proof Protection Tank
1. Product Name:Battery explosion proof tank for the over-charge and forced discharge
2. Product Model:GX-FB
3. Description:
The tester is mainly used for the test of over-charge and over-discharge. Put the sample battery into the tank and connect to the charge and discharge tester to ensure the safety of the operator.
4. Features:
(1) Each testing tank: 500*500*500mm(W*D*H), or customized.
(2) Material:
★ Outward box: A3 steel board with the thickness of 3mm.
★ Interior box: SUS#201 stainless steel
(3) Single open-door with double decks and stainless steel material with the silicon sealing strip.
(4) Anti-explosion handle-lock
(5) Side convection window: Openings of 200x300 mm in the front and back or side for the heat dissipation. The stainless steel wire net can prevent the explosive substance from splashing.
(6) Put the Bakelite plate into the testing tank or paste Teflon tape for the insulation and burn resistance.
(7) Two round connecting circles in the back of the tank for connecting to testing wire.
(8) Independent panel to control the light and exhaust for each tank and the smoke detection alarm would start automatically when sensed smoke or fire.
(9) Strong exhaust fan
(10) Thermal insulation design between each tank to prevent mutual influence.

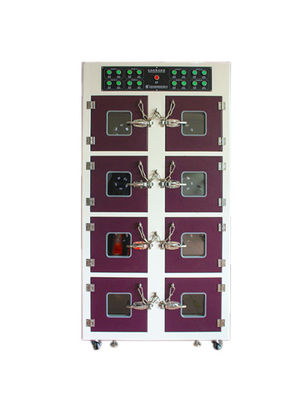

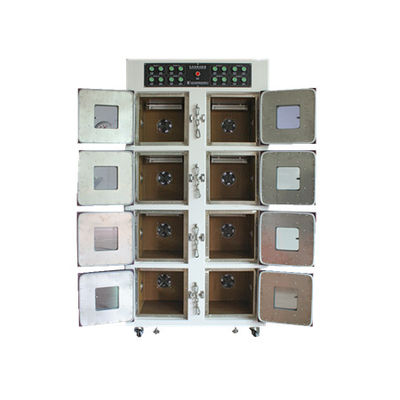

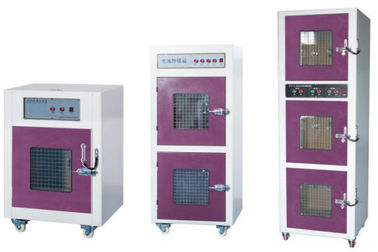

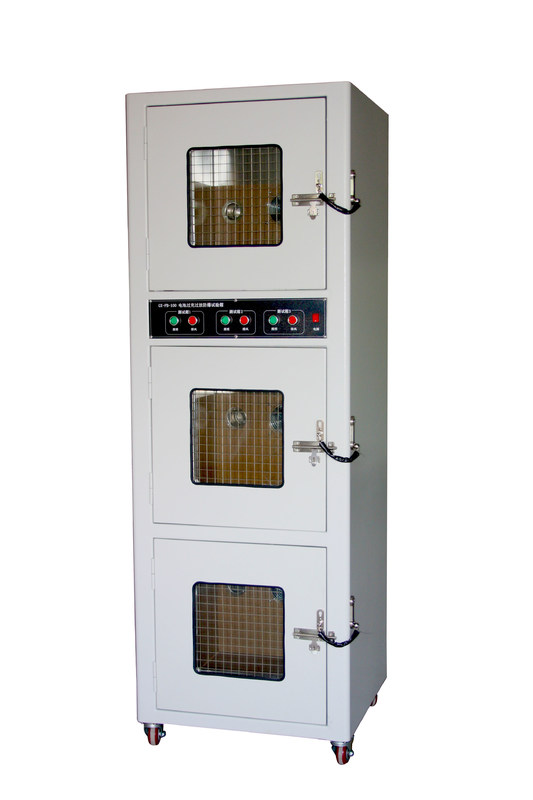

5. Product pictures
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
