UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery

UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery

Product Details:

Place of Origin: Dongguan, China
Brand Name: GAOXIN
Certification: ISO 9001
Model Number: GX-6052-C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen,T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Control Mode: PLC Control Mode Height Setting And Display: PLC
Clamping Method: Pneumatic Adsorption Sample Weight: 3kg±100g
Drop Height: 300~1500mm(adjustable) Drop Floor: Concrete, Wood And Steel(Optional)
High Light:

Free Fall Drop Tester For Battery

,

Free Fall Drop Tester IEC62133

,

UN38.3 Free Fall Drop Test Machine

Product Description

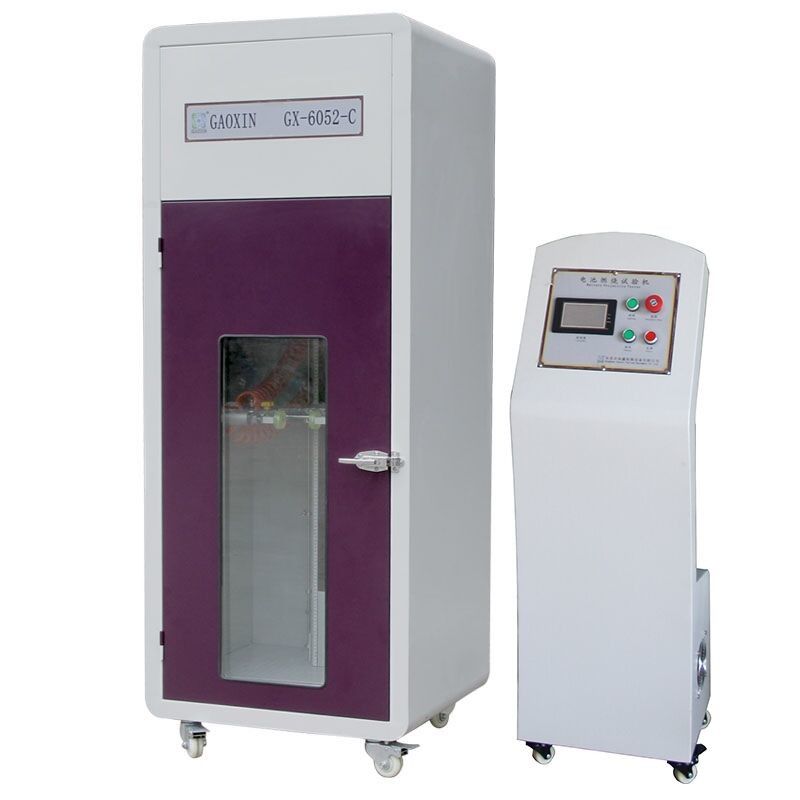

UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery





1. Product Name:Battery free drop tester



2. Product Model:GX-6052-C



3. Test standard:UN38.3,UL1642,UL2054,QC/T 743-2006, QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,GB31241,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052,IEC62133-2012, SAE-J2464,GB31241.



4. Scope:

The tester is applicable for the free drop test of battery, mobile phone, Intercom, electronic dictionaries, building intercom, and CD/MD/MP3 and other small consumer electronic products and components



5. Feature:

Each of the samples is to be dropped from the height of 1 m (3.28ft.)so it strikes a concrete surface in the position that is most likely to produce the adverse results. Each sample is to be dropped three times. The sample should not explode or catch fire after the observation period.

Pneumatic structure is used to release the sample and the drop height can be adjusted to certain height shown on the altitude scale.



6. Technical Parameter:

Sample weight 3kg±100g
Drop height 300~1500mm(adjustable)
Height adjust By the altitude scale
Clap method Pneumatic adsorption
Drop floor Concrete, wood and steel(Optional)
Drop method Multi-angle(Ling, the Angle, the surface)
Base size 500×600×10mm
Air pressure 1MPa
Volume 500×900×1650mm
Weight 80kg
Power 1∮ ,220V,3A



UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery 0UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery 1UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery 2







FAQ

Q1: What is the warranty for the equipment?

A1: Warranty for the equipment is 1 year,and free lifelong technical support is available through video email.

Q2: What is the payment way?

A2: T/T ; 50% deposit and 50% before shipment.

Q3: How long the delivery time is?

A3: Generally,the delivery time is about 15-25 days, except for the special customization.

Q4: How to prove your product is qualified?

A4: The production of all equipments are strictly supervised to ensure quality. We have got various relevant certification including ISO,ASTME,DIN,JIS,UL ,BS and so on. What is more, we will carefully make installation and debugging before shipment.

Q5: Is the package strong enough for long-distance shipment?

A5: Sure.We use strong and standard wood case for the package and we will buy insurance for each shipment.
