UN38.3 Battery Safety Testing Equipment With 10kg Load lithum ion battery testing equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | GAOXIN |
| Certification: | ISO |
| Model Number: | GX-5099-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | fumigation-free wood box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Work Platform: | 200 Mm×200 Mm | Maximum Load: | 10kg |
|---|---|---|---|
| Peak Acceleration: | 20---1500 G | Pulse Duration: | 50-1ms |
| Impact Wave: | Half Sin | Operation System: | Microsoft Windows2000/XP |
| Frequency Range: | 0.5---12KHz | Acceleration Range:: | ±2500G |
| High Light: | UN38.3 Battery Safety Testing Equipment,10kg Load Battery Safety Testing Equipment,UN38.3 Battery Tester |
||
Product Description

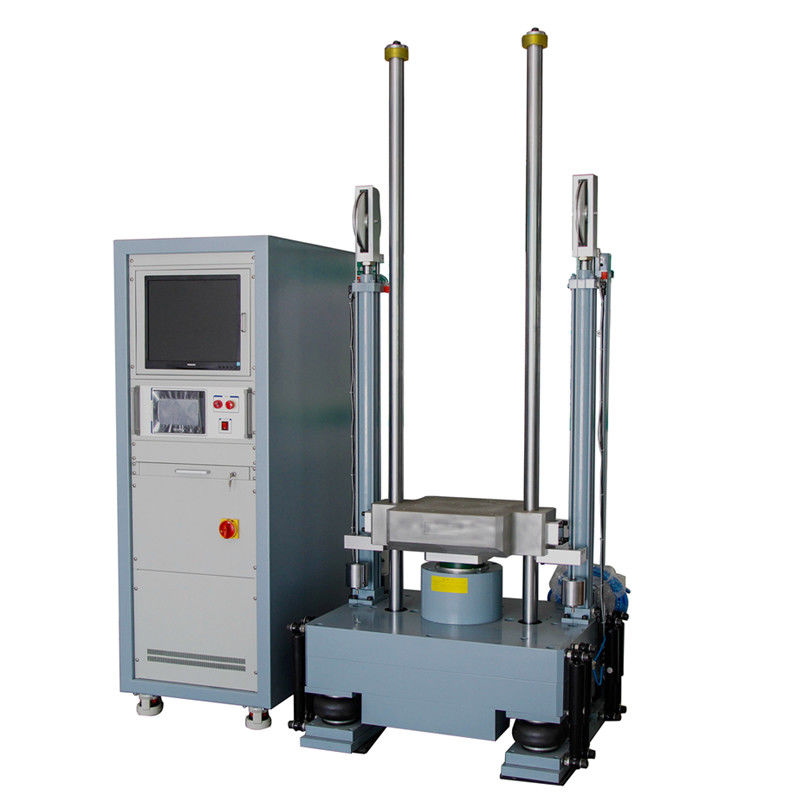

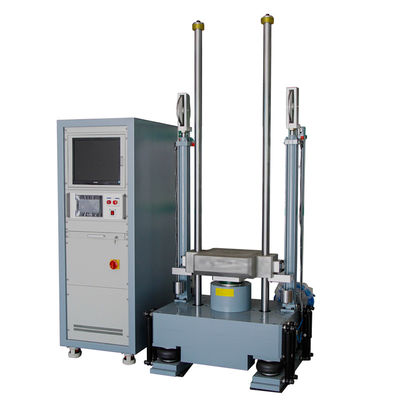

Battery Acceleration Shock Tester with Max. Load with PC & software
| Input voltage | 220V±10% 50Hz |
| Shock Tester Structure |
This testing system consists of three units: shock frame with sample stage, shock propelling hydraulics, and shock control unit with PC & software Work Platform: 200 mm×200 mm Maximum Load: 10 kg or bigger Volume: 600×550×1950mm Peak Acceleration: 20---1500 G Pulse Duration: 0.5---7ms Weight: 650 kg |
| Measure System |
Input Channel: 2 Sampling Frequency 192KHz Input Method: Voltage, electricity Coupling Method: AC,DC,ICP Pulse Duration: 50-1ms Voltage Range: -10V--+10V Impact Wave: Half Sin Operation System: Microsoft Windows2000/XP communication interface: USB2.0 |
| System Acceleration Sensor |
Brand: B&W Model: 22100 Output: Electric charges Sensitivity: 3.93Pc/g Frequency Range: 0.5---12KHz Acceleration Range: ±2500G Working Environment: -40~+160℃ |
| Working Requirement |
Power: 220V±10% 50Hz Compressor air: 0.5--0.8MPa |
Our Products have passed the certification of China National Standard System. The products have been tested according to GB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
