• Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load
Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load

Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO9001: 2008
Model Number: GX-8002-C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15-25 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Funxtion: Fabric Tensile Strength Tester Type: Physical Test Equipment
Applicable Industry: Leather, Paper, Fabric Max. Load: 500kg
Tests: Tensile Test, Bending Test, Compression Test Power: Electronic
Control: Computer Control Valid Stroke: 650mm
Motor: AC Motor Speed Range: 25~500mm/min
Weight: 152kg(or Customized)
High Light:

220V Peeling Strength Tester

,

500kg Load Peeling Strength Tester

,

220V Adhesive Bond Tearing Strength Tester

Product Description

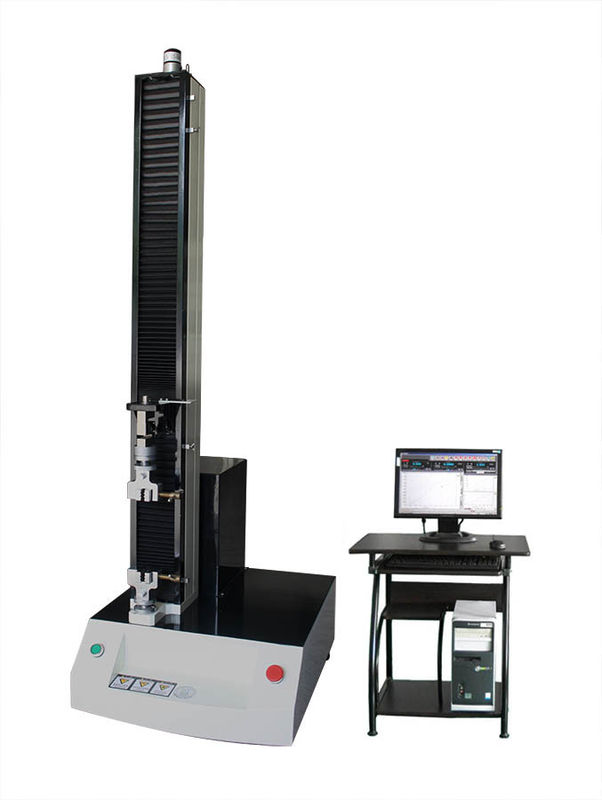

90 Degree Adhesive Bond Tearing Strength Tester 220V With 500kg Load

1. Equipment summary:

The tensile testing machine can be used for various tests including bending test, tensile test, peeling test, bond strength test and so on. Tensile strength testing machine is mainly applied to test non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper,profiles, spring steel, bearing steel,stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.

Fot the peel force test, the testers use a motorized test stand, digital force gauge and peel fixture to apply tension to a safety seals, tapes and laminates.


Technical parameters:


Model

GX-8004 tensile strength testing machine

Load range

5, 10, 20, 50, 100, 200, 300kg

Unit exchange

kgf,gf,Ton,lbf,N,kN

Accuracy of load

± 0.5% of indicated value

Load resolution

1/10,000

Deformation measuring resolution

0.001mm

Action

Tensile and compression function

Load Magnifying Rate

Variable speed

Max. tensile space

800mm (mot including fixture)

Valid test width

400mm

Test speed

25-500mm/min

Input mode of speed

Knob

Speed accuracy

± 0.5%

Displacement accuracy

0.001mm

Data sampling

200r/s

Spacing function

10 spacings for each time, the smallest and largest data will display and average value will be calculated automatically

Display

Computer (s)

Motor

AC  motor

Control system

Computer

Weight

70kg

Standard Accessories

1 Sensor; A pair of tensile fixture; a pair of universal functional fixture;

Power

220V/50HZ






Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load 0
Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load 1
Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load 2
Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load 3
Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load 4
Adhesive Bond Tearing Peeling Strength Tester 220V With 500kg Load 5
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
