ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine

ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001:2008
Model Number: GX-8001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International strong wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 30 sets per monh
Get Best Price Contact Now

Detail Information

Capacity: 10,20kN Or Customized Unit Exchange: Kgf ,lbf ,N, KN, Kpa, Mpa
Load Resolution: 1/100,000 Or(1/200,000optional) Maximum Stroke: 1100mm Or Customized
Valid Width: 410mm Testing Speed: 0.0001~1000mm/min Optional
Application: Textile Tensile Strength Test
High Light:

ASTM D1593 Universal Material Tester

,

ASTM D1790 Universal Material Testing Machine

,

JIS K6545 Universal Material Testing Machine

Product Description

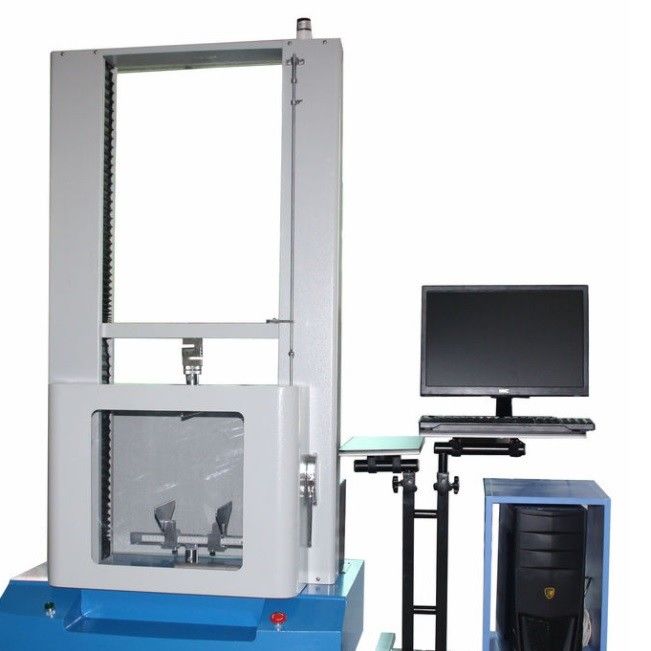

Tensile Tester ASTM D1790 JIS K6545 Universal Material Tension Testing Machine



1. Quick  Details



Alternative name

Tensile Strength Tester

Function

Test  for  tensile strength, elongation, extension, and peeling, tearing strength of leather, fabrics, shoes...

Type

Servo motor and computer controller tensile test machine

Weight

400kg

Volume

105×105×151cm

Corresponding test standard

ASTM D1790,D1593,JIS K6545,HB-T2877, CNS-7705





2. Textile Material Strength Testing Machine Description



The tensile testing equipment can be used for the test of the tensile strength,compressive strength,elongation and so on.

The equipment can also provide tests for peeling,tearing,compressing,shearing and viscous force ,which are applied widely in industries like mental,plastic,rubber,textile,compound chemicals,cable and wire,leather.



3. Textile Material Strength Testing Machine Features(further information)



(1) graceful appearance design : dynamic pedestal along with aluminum alloy holder with spray molded handling.



(2) precise transmission mechanism :high precision and gapless ball screw ,use timing belt for the accuracy of the transmission system



(3) advanced  control :data collection and motion control by full computer



(4) powerful software function :all-open testing software under the Windows XP operating system. Users can complete nearly all mechanics testing with the software or design testing way by themselves. The outcome can be shared with most office  softwares.



(5) superhigh accuracy: ± 0.5% of the accuracy of load,0.001mm of the diaplacement  accuracy,1/10,000 of the load resolution.



ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 0

ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 1
ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 2
ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 3
ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 4
ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 5
ASTM D1790 / D1593 JIS K6545 Universal Material Testing Machine 6
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
