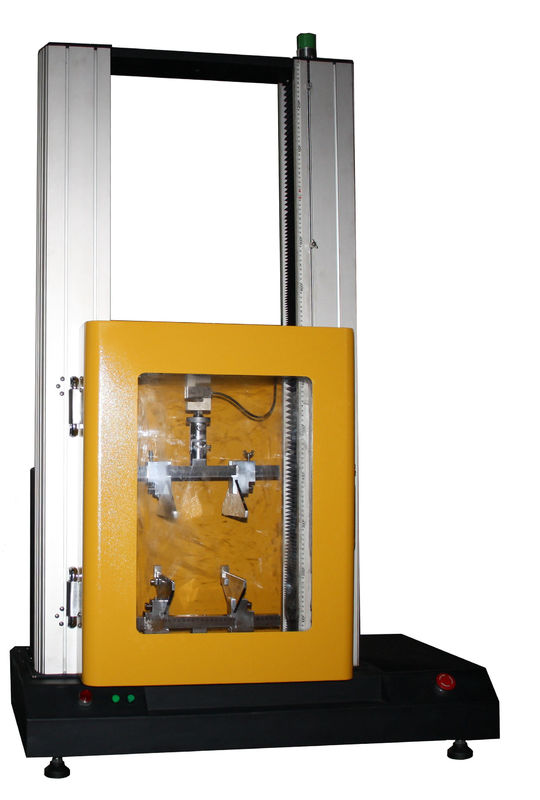

• 0.4KW 10KN Glass Ceramic Bend Tester With Special Jig
0.4KW 10KN Glass Ceramic Bend Tester With Special Jig

0.4KW 10KN Glass Ceramic Bend Tester With Special Jig

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 2008
Model Number: GX-8001

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Bend Testing Machine Kind: Physical Test Equipment
Applicable Industry: Ceramics, Glass, Timber Max. Load: 10T
Function: Bending Test Power: Electronic
Test: Third-point Loading; Central-point Loading Effective Tensile Space: 610mm
Force Measuring Accuracy: Within 0.5% Speed Range: 0.001~500mm/min
Weight: 152kg
High Light:

10KN Glass Bend Tester

,

0.4KW Ceramic Bend Testing Machine

,

Glass Bend Tester With Special Jig

Product Description

0.4KW 10KN Glass Bend Testing Machine With Special Jig Universal Testing Machine




Product Description

The bend testing machine is used to test bending fatigue, bend strength of brittle materials, such as ceramics, glass, timber.
The bend testing can do test of central point bending and three-piont bending.
It can automatically calculate the maximum test force, breaking force value, upper, lower yield strength, tensile strength, compressive strength, flexural strength. Wiht a special fixture can use for glass products, glass screen, touch screen to do three-point and four-point bending test.

Fitted with special jig, the tensile tester is able to do three-point, or four-point bending test for glass products, mobile phone screen, LCD.


Specifications

The maximum loading

1000kg(10KN)

Accuracy class

0.5

Force measuring range

0.2%~100%

Force measuring accuracy

Within 0.5%( displaying value )

Resolution of test machine

1/±250000 (max load)

Load sensor

A 5KN sensor

Unit

kgf ,lbf ,N, KN, Kpa, Mpa

The extension configuration

can be equipped with multiple sensors (choose)

The effective width

370mm

The effective tensile space

610mm

The speed range

0.001~500mm/min(servo motors)

The displacement measurement accuracy

Within ±0.5% ( displaying value )

The deformation measurement accuracy

Within ±0.5% ( displaying value )

Safety device of testing bench

Electronic limit protection

Lifting device of testing bench

Automatic control of fast / slow two choices, can crawl

Returning function of testing bench

Manual or automatic two choices,

Overload protection

Exceeding the maximum load of 10%, automatic protection

Fixture configuration

Three point bend fixture, four point bend fixture (can be customized)

Power supply

AC220V±10% 0.4KW (or be customized)

Weight

152kg

Dimension(W×D×H)

75×70×238cm3



transaction information:


Minimum Order Quantity

1set

Price

negotiation

Packaging Details

Non-fumigation wooden box

Delivery Time

15 working days

Payment Terms

FOB Shenzhen, EXW

Supply Ability

50 sets per month, stock


0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 0

0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 1
0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 2
0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 3
0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 4
0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 5
0.4KW 10KN Glass Ceramic Bend Tester With Special Jig 6
