PLC Interface Control Battery Thermal Shock Test Equipment UL 1642 UN38.3
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO |
| Model Number: | GX-3020-ZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Model: | GX-3020-ZC | Capacity: | 150L |
|---|---|---|---|
| Pressure Range: | 0.5~100Kpa | Usage: | Storage Battery In Vacuum Condition |
| Control Mode: | PLC Touch Screen | Test Standard: | UN38.3 UL1642 |
| High Light: | Thermal Shock Test Equipment UL 1642,Thermal Shock Test Equipment UN38.3,PLC Interface Control Battery Test Equipment |
||
Product Description

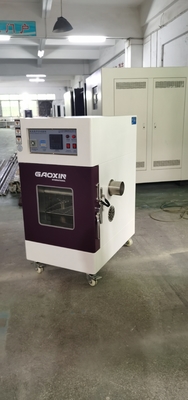

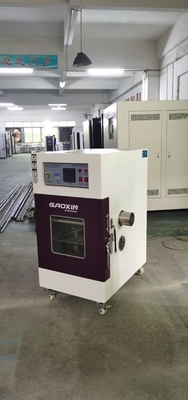

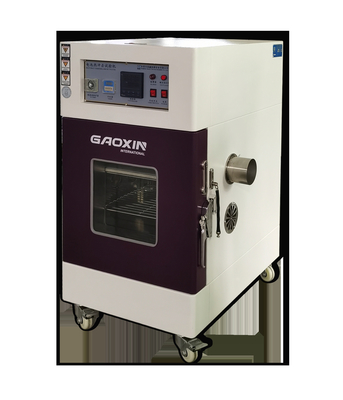

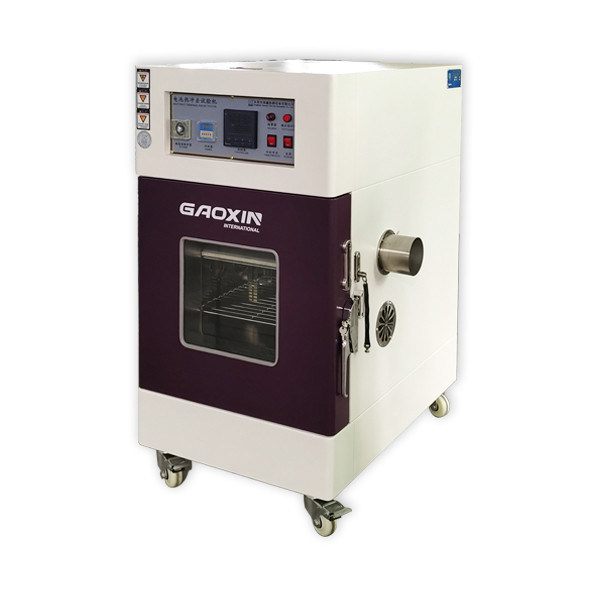

The test machine for the Battery Test Equipment of thermal shock test equipment UL 1642 UN38.3
Description
The low air pressure test chamber is used for testing safety capability of battery in the environment of
high altitude and low pressure.
The test result: the specimen battery is qualified if non explosion, no fire, non air leak, non electrolyte
leakage
The low air pressure test chamber is designed for test standard of UL, UN, IEC.
The equipment can automatically control the test period (for example, 6H), and real-time monitor the pressure change in the tank, Can realize automatic termination of the test process..
Specifications
|
Model |
GX-3020-Z |
|
Air pressure range |
0.5～100Kpa usually 11.6kpa |
|
Internal dimension W*H*D mm |
500*600*500 (or customer specified) |
|
External dimension W*H*D mm |
700X570X810 |
| Vacuum display | SMC digital display vacuum gauge |

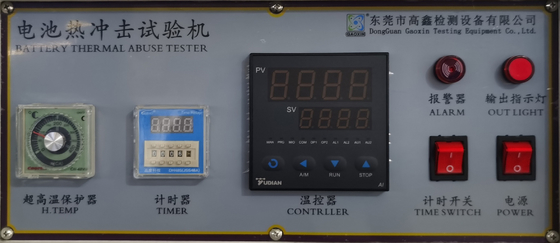

| Control method | PLC interface control |
| Timing | Seting and display in the PLC interface 0-9999H (H/M/S seconds can be shifted) |
| Pressure fluctuation | ≤5% |
| Pressure maintain period | 5% reduction in 26 hours |
|
Machine weight(about) |
110KG |
|
Power |
4.0KW |
|
Power supply |
AC 220V 50HZ |
|
Internal material |
SUS 304# stainless steel (6.0mm thick) |
|
External material |
SECC steel plate, processed by fine powder baking finish (1.5mm thick) |
|
Vacuum pump |
built-in |
| Equipment using power | 3∮, AC220V±10%, 50Hz, 10A |
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.
2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.
3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size
4.Can I make changes before I ship?
No,it can not change if machine finished
5.When will my order ship?
Need 10-45 workdays base on which type the the machine
6.How can I track my order?
We will send the schedule by each stage
