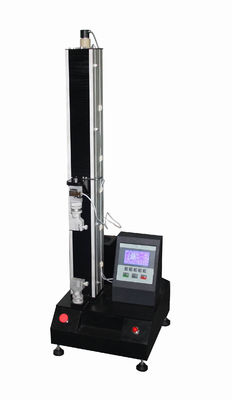

Desktop Universal Material Testing Machine Electric Fabrics Tensile Tension Tearing Strength Tester

China Desktop Universal Material Testing Machine Electric Fabrics Tensile Tension Tearing Strength Tester supplier

Large Image :  Desktop Universal Material Testing Machine Electric Fabrics Tensile Tension Tearing Strength Tester

Product Details:

Place of Origin: China(Mainland)
Brand Name: GAOXIN
Certification: GB、ISO、ASTM、BS、DIN、JIS
Model Number: GX-8002-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: standard wooden package
Delivery Time: 20-30 working days
Payment Terms: T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Power: Electronic Usage: Universal Material Testing
Max Load: 500kg (5000N) Net Weight: 180 Kg

Desktop Universal Material Testing Machine Electric Fabrics Tensile Tension Tearing Strength Tester





1.Quick Details



Power

Electronic

Usage

Universal material testing

Max load

200kg (2000N)

Measuring accuracy

the value of 1%

Test resolution

Max load 1 / 100,000, constant the resolution

Load accuracy

0.01

Testing speed

from 0.5 to 500mm / min

Motor

Sevro Motor





2. Description



Computer Control Desktop Tensile Testing Machine a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line. This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 500kg.





3. Main Functions



Computer Control Desktop Tensile Testing Machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality.

Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials. So its alias is universal material testing machine.





4. Main Feature



Computer Control Desktop Tensile Testing Machine adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation. Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.





5. Applicable Industry



Computer Control Desktop Tensile Testing Machine is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.





6. Software Features



1. The software description:

A. function of standard modular: provide users with the necessary applications to the test, covering GB, ASTM, DIN, JIS, BS ... and other testing standard specification.

B. tested product information: provide users with the data to set about the products, one time to input and re-use permanently . for improving the accuracy, the data can be corrected by the formula automatically.

C. Dual-Report Editor: provide users with the reported format that users choose (testing program add EXCEL reported format, Extend the previous single pattern of statements)

D. the data’s unit of length and force can be exchanged, unit of force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.

E. auto-optimization of graphic scale, display the best measurement of graphics. It can test the moving exchange in graphics. It has the load - displacement, load - time, displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.

F. Test results can be output in EXCEL format.
G. testing result can be automatically preserved or manual preserved, after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, X% load in break displacement, load X% in break displacement, and so on . the test data can be stored in any disk.

H. Software has a capability that can output the before data.





7. Accessories



A. warranted book within one-year and operating instructions.

B. a group of fixture(Can be customized according to requirements)

C. testing software for tensile machine.

D. a set of brand computer





8. Specifications



Model

GX-8002-C

Max load

5kN (option)

Accurate grade

1 grade

Effective measuring range

0.2%~100%(1grade)

Measuring accuracy

the value ±1%

Tester resolution

Max load 1/100,000, constant the resolution

Load sensor

Basic configuration, sensor(max load), one

Extended configuration, can add more sensors

Effective tensile space

600mm(can be increased the height according to customers requirement)

Range of testing speed

0.5~500mm/min

safety

Electronic-limit protection

Testing platform moving  device

Fast /slow two speeds to control, can jog

Return back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

Overload 10%,automatic protection

fixture

A set of tensile fixture

Machine size

400×500×1300mmm (lenght*width*height)

Power system

Panasonic AC Servo Motor + Driver

Power supply

220V,50HZ

Power

0.66kW(depending on different demand of force, using different motor)

Net weight

(appr)180 kg



9.Company information



Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service
