Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester

China Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester supplier
Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester supplier Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester supplier Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester supplier Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester supplier

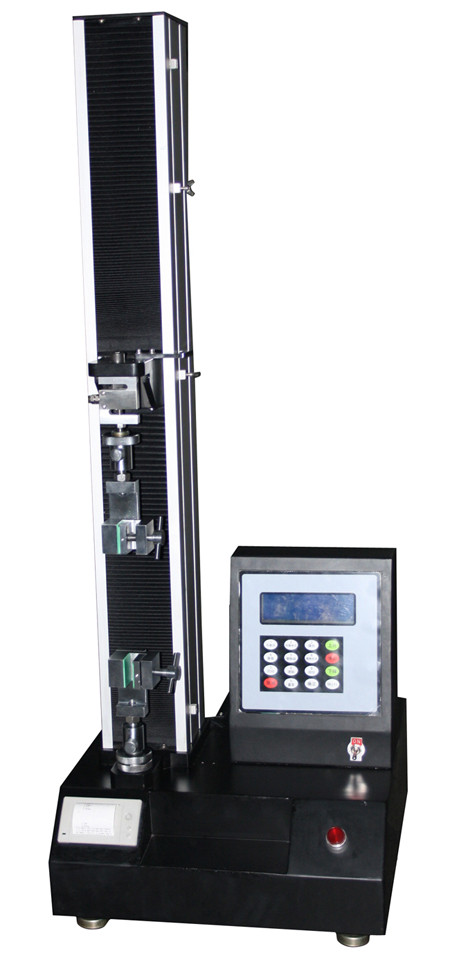

Large Image :  Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001:2008
Model Number: GX-8004

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Material: 304# Stainless Steel Color: Silvery White
Type: Vertical Type Capacity: 5,10,20,50,100,200,300,500kg
Testing Speed: 25-500mm/min Display: LCD
Drive: AC Motor

Automatic Electronic Compression Testing Machine Table Type Tensile Strength Tester



1. Quick Details



Alternative name

Table type tensile strength tester With Serve Motor

Function

Test for tensile strength, elongation, extension, and peeling, tearing strength

of leather, fabrics, shoes...

Type

Table type electronic tensile tester

Weight

70kg

Volume

80×53×180cm(W×D×H)

Corresponding test standard

ASTM D1790,D1593,JIS K6545,HB-T2877, CNS-7705





2. Description



Tensile testing equipment  is widely used in controlling the quality; Rubber, Plastics;

metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production;

textile fiber; wire and cable; packaging materials...

Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing,

compression, shearing and adhesive strength.





3. Features



a.  Elegant and nice structure design

b. Precise leading screw

c. Advanced controlling system- data sampling and drive control by computer

d. Powerful software function- fully opening testing software. Users can finished all mechanics test

items by this existing software, but also can edit exclusive test method according to specifical

requirement.

e. Excellent test accuracy - better 1 degree,  1/100,000 strength resolution; resolution of deformation

measurement is 0.001mm.





4. Specifications



Model

GX-8004

Load range

5-200kg

Unit exchange

kgf,gf,Ton,lbf,N,kN

Accuracy of load

± 0.5% of indicated value

Load resolution

1/10,000

Deformation measuring resolution

0.01mm

Action

Tensile and compression function

Load Magnifying Rate

Variable speed

Max. tensile space

650 mm (not including fixture)

Valid test width

400mm

Test speed range

25~500mm/min

Input mode of speed

Button

Speed accuracy

± 0.5%

Displacement accuracy

0.001mm

Data sampling

50 r/s

Spacing function

10 spacings for each time, the smallest and largest data

will display and average value will be calculated automatically

Display

LCD

Motor

AC motor

Control system

Electronic

Weight

70kg

Standard Accessories

1 Sensor; A pair of tensile fixture; a pair of universal

functional fixture;

Power

AC220V,50/60Hz,15A



5.Company information



Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service
