UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine

UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine

Product Details:

Place of Origin: Guangdong, China
Brand Name: Gaoxin
Certification: ISO 9001
Model Number: GX-6053

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 ~ 20 days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per months
Get Best Price Contact Now

Detail Information

Control Mode: Remote Control Burne: Burne Burner
Flame Combustion Time: 1~9999s Adjustable Round Hole Diamet: 100±2 Mm
Width Of Netting: Octagonal, Parallel To The Distance Of 24" Height Of Netting: 12"
Octagonal Hood Material: Aluminum Wire Mesh
High Light:

UL 1642 Battery Flame Test Burning Tester

,

Octagonal Battery Flame Test Burning Tester

,

Battery Projectile Testing Machine

Product Description

UL 1642 Lithium-on Battery Flame Test Burning Tester Battery Projectile Testing Machine





Production Description



This machine is suitable for lithium battery or battery pack flame test. A 102 mm diameter circular hole was drilled on a test platform, and a steel wire net was placed on the circular hole, and the battery under test test was placed on a wire screen. Install an octagonal aluminum mesh around the specimen burns down; and time the combustion process.



Product specifications



Burner Diameter: 9.5mm; length:100mm
Flame Application Time 0~ 999,999 seconds ±0.1second
Testing Table Hold Diameter 1/4″×14″
Testing Cover Width 24″(610mm) , octagon shape
Testing Cover Height 12″(305mm)
Mesh Material Stainless steel
Consumption Gas Liquefied petroleum gas or methane
Accessories Burner,holder rack,testing table,testing cover
Power supply AC220V, 50Hz(or specified)

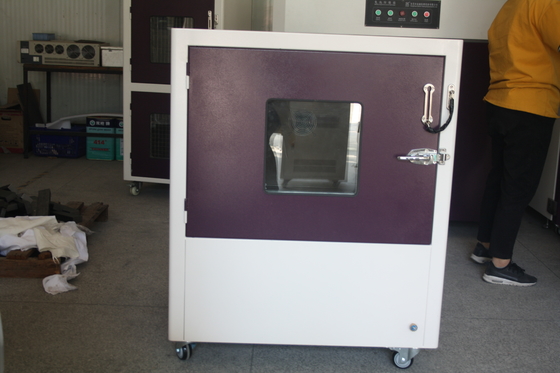

UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 0

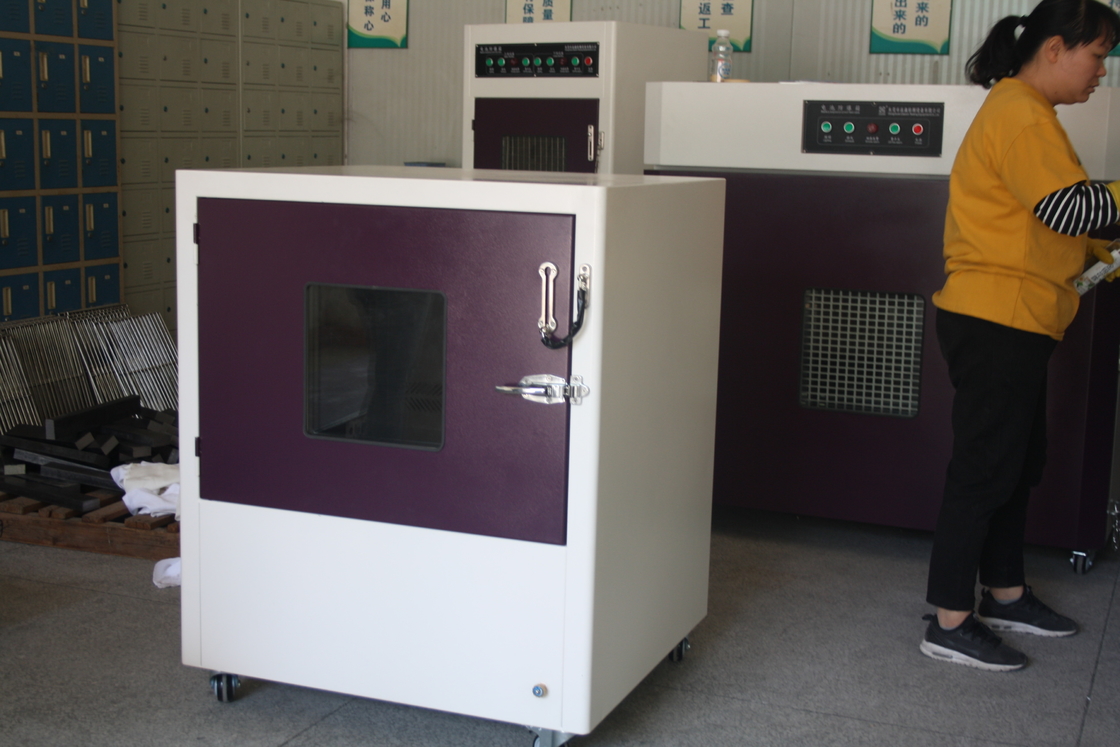

UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 1

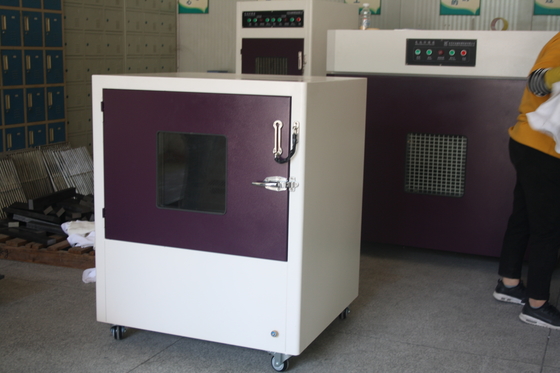

UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 2

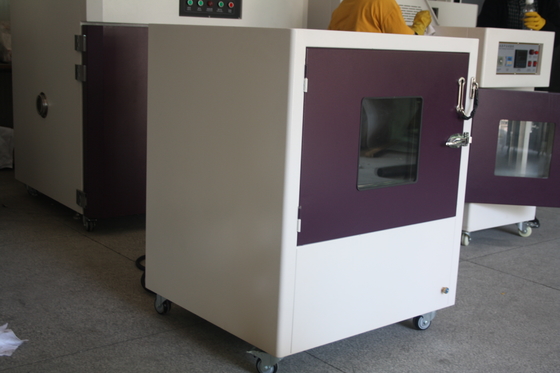

UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 3
UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 4
UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 5
UL 1642 Battery Flame Test Burning Tester , Battery Projectile Testing Machine 6
1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
