Double Column 5 Ton Hydraulic Universal Material Tensile Strength Testing Machine Compression Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001: 2008 |
| Model Number: | GX-8001-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Physical Test Equipment | Applicable Industry: | Ceramics, Glass, Timber |
|---|---|---|---|
| Max. Load: | 5000kg | Power: | Electronic |
| Valid Stroke: | 1200mm ,can Customize | Motor: | AC Motor |
| Speed Range: | 25~500 Mm/min | Display: | LCD Display |
| High Light: | tensile testing machine,universal testing machine |
||
Product Description
Double Column 5Ton Hydraulic Universal Material Tensile Strength Testing Machine Compression Tester
1. Equipment summary:
Tensile strength testing machine is an intelligent testing machine that combined with the electronic technology and mechanical transmission.it has accurate load speed, range of force measurement, high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
2. Main function:
Tensile strength testing machine mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper,profiles, spring steel, bearing steel,stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.
3. Applicable industry:
Tensile strength testing machine widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.
4. Technical parameter:
|
Model |
GX-8001-M 50kN tensile strength testing machine |
|
Maximum load |
2kN,5kN,10kN,20kN (optional) |
|
Accurate |
1 grade |
|
Measuring accuracy |
The value ±1% / the value±0.5% |
|
Tester resolution |
Max load 1/100000, constant the resolution |
|
Effective testing width |
400mm (or can be widened as customers requirement ) |
|
Effective tensile space |
650,800,1000mm (or can be increased the height according to customers requirement) |
|
Testing speed |
From 0.5 to 1000mm/min |
|
Unit |
kgf, gf, lbf, N, kN, Mpa, pa(optional) |
|
|
|
|
Accruacy of displacement measurement |
Tolerance: ±0.5% |
|
Accuracy of measured deformation |
Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation) |
|
Safety |
Electronic-limit protection |
|
Testing plat form moving device |
Fast /slow( two speeds to control) ,can jog |
|
Return Back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%, automatic protection |
|
Fixture |
One set of tensile clamp |
|
Volume |
800*1000*2500mm (L*W*H) |
|
Motor |
servo motor and drive |
|
Power |
220V,50HZ or as the requirement |
|
Wattage |
0.66kW (different demand of force with different motor) |
|
Weight |
300 Kg(approx) |

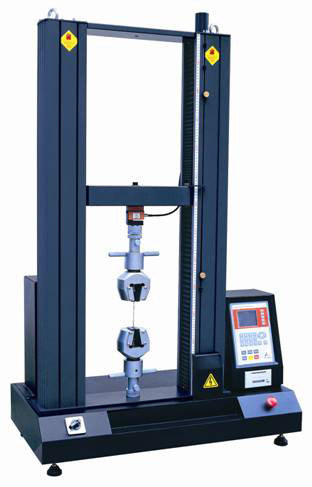

5. Picture
