100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment

China 100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment supplier
100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment supplier 100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment supplier 100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment supplier

Large Image :  100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO9001: 2008
Model Number: GX-8002-C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Rubber Tensile Testing Machine Type: Physical Test Equipment
Applicable Industry: Leather, Rubber Function: Tensile Test, Bending Test, Compression Test
Control: Computer Control Valid Stroke: 650mm
Speed Range: 0.5-600mm/min Weight: 152kg

100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment





Product Name:   rubber tensile testing machine

Produce Model: GX-8002-C

Test standard:

ASTM D412 - 06a Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension

ISO 37:2005  Rubber, vulcanized or thermoplastic -- Determination of tensile stress-strain properties

JIS K6251-2010  Rubber, vulcanized or thermoplastic --Determination of tensile stress-strain properties





1. Equipment summary:



 The tester is used to test tensile properties of vulcanized or thermoplastic rubber with load capacity of 500kg.





2. Main function:



Rubber tensile testing machine is mainly applied to test non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper,profiles, spring steel, bearing steel,stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire.





3. Applicable industry:



Rubber tensile testing machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.







4. Technical parameters:



Model

GX-8002-C

Load range

5, 10, 20, 50, 100, 200, 300, 500kg

Unit exchange

kgf,gf,Ton,lbf,N,kN

Accuracy of load

± 0.5% of indicated value

Load resolution

1/10,000

Deformation measuring resolution

0.001mm

Action

Tensile and compression function

Load Magnifying Rate

Variable speed

Max. tensile space

800mm (mot including fixture)

Valid test width

400mm

Test speed

25-500mm/min

Input mode of speed

Computer control

Speed accuracy

± 0.5%

Displacement accuracy

0.001mm

Data sampling

50 r/s

Spacing function

10 spacings for each time, the smallest and largest data will display and average value will be calculated automatically

Display

Computer (s)

Motor

AC  servo motor

Control system

Computer

Weight

130kg

Standard Accessories

1 Sensor; A pair of tensile fixture; a pair of universal functional fixture;

Power

220V/50HZ

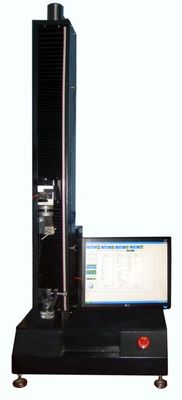

5. Pictures





          100Kg - 500 Kg Capacity Servo Control System Fabrics Tearing Strength Tester Rubber Tensile Tester Testing Equipment









6.Company introduction:



Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service



After sale service:



1. Operation manual and video, till user can operate the testing machine masterly.

2. One year warranty

3. Free operation training.

4. Professional engineer to solve any problems or confusion about the test equipment.
