Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001: 2008
Model Number: GX-8004

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Function: Fabric Tensile Strength Tester Type: Physical Test Equipment
Applicable Industry: Leather, Paper, Fabric Max. Load: 500 Kg
Test: Tensile Test, Bending Test, Compression Test Power: Electronic
Control: Computer Control Valid Stroke: 650mm
Motor: AC Motor Speed Range: 25~600mm/min
Weight: 152kg
High Light:

tensile testing machine

,

universal testing machine

Product Description

Electronic Universal Tensile Testing Equipment Fabric Leather Tensile Strength Tester Tearing Testing Machine







1. Product Description



Fabric strength tester, tensile testing machine is mainly used for all kinds of fabrics, clothing, composite materials tensile breaking strength and peel strength test, also be used for seam strength and joint efficiency measurement, fabric seam release test, tensile elasticity test (test load at specified elongation, elongation at specified load test, elongation, elastic recovery rate, load stress relaxation force elasticity stress relaxation measurement).





2. Feature of Fabric Tensile Strength Tester



1.The instrument adopts microcomputer control, intelligent operation, and convenient.

2.All kinds of real-time test data and dynamic curve through the printer, print it out, easy to carry and preservation.

3.All kinds of test parameters can be set according to need, but the default value is the value of the prescribed standards).

4.The average value can output force and maximum, CV value, the average length, maximum, CV value, rupture work, test results in the report form printing.

5.With range transfinite stop and alarm function.

6.Provide free software upgrade.

7.Provide jig 1 set, 1 set of sensors.





3.Applicable industry

  Fabric





4.Specifications



Capacity (optional)

10, 20, 50,100, 200,300kg

Unit (Switchable)

KG , N , LB

Stroke(exclude the grip)

650 mm(optional)

Test Speed

25~500mm/min ( selectable )

Load Accuracy

±2%

Load Resolution

1/10000

Stroke Resolution

0.01mm

Sample Rate

50 times/sec

Method of Speed Input

Micro-computer

Indicator

Print able, display elongation value, test value, max value and break values.

Dimension(W*D*H)

50*36*183CM

Weight

80KG

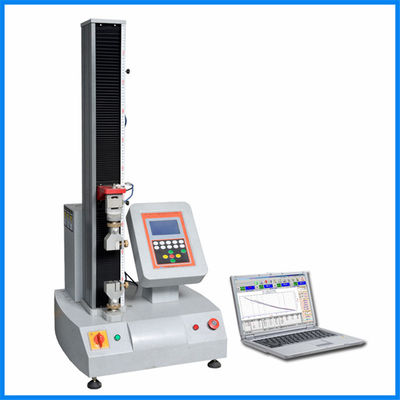

5.Pictures



                         Electronic Universal Tensile Testing Equipment Fabric Leather Tensile Strength Tester Tearing Testing Machine 0                                                                      Electronic Universal Tensile Testing Equipment Fabric Leather Tensile Strength Tester Tearing Testing Machine 1
