Hydraulic Lithium Ion Battery Testing Equipment Crush Test For 18650 Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | Gaoxin |
| Certification: | ISO 9001 |
| Model Number: | GX-5067 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 20 working days |
| Payment Terms: | FOB Shenzhen, T/T |
| Supply Ability: | 10 set/batch |
|
Detail Information |
|||
| Material: | Stainless Steel | Function: | Battery Crush Test |
|---|---|---|---|
| Force Range: | 0-20 Kn | Driver: | Hydraulic |
| Crush Space: | 300 × 300× 200mm , 1/3 Teflon Tape(resistance To High Temperature And Corrosion) | Stroke: | 0~300MM |
| Structure: | Double Visual Explosion Proof Glass，Exhaust Fan And Duct In The Back | Power: | 380V, 50HZ， 10A |
| Weight: | 230KG | ||
| Highlight: | Hydraulic Lithium Ion Battery Testing Equipment,18650 Lithium Ion Battery Testing Equipment,Crush Test Battery Testing Machine |
||
Product Description
Hydraulic PLC Integrated Control Battery And Cell 18650 Lab Tester Battery Crush Test Equipment
Battery Crush Test Equipment
Model: GX-5067
Test Requirements: Severe crushing of a cell shall not cause fire or explosion
Test standard:
UN38.3, IEC62133, SAE-J2464
SJ/T11169-1998(equal to UL 1642:1995),SJ/T11170-1998(equal to UL2054:1997),UL 1642[13],GB8897.4—2002, IEC60086-4:2000
2.Technical Parameter:
|
Driver |
Hydraulic |
| Control Method | PLC (7" touch screen) |
|
Force range |
13KN ± 0.78KN(Maximum of 20KN) |
|
Force accuracy |
1N; resolution of 1/10000 |
|
Crush space |
300 × 300× 300mm , 1/3 Teflon tape(resistance to high temperature and corrosion) |
|
Stroke |
0-300MM |
|
Structure |
All in one structure, Upper is test zone and controller, base is load-bearing and storage |
| Door |
Automatic opened or closed |
| Crush Speed | 0.01~20mm/s |
| Crush Plate | Dia.15cm or 20cm circle plate |
| Pressure relief vent | Athe back of test chamber, the pressure relief venting opened automaticlly when the pressure is too large or battery explosion |
| Communication interface | USB, the data can be ouput |
|
Delay function |
0~9999(Arbitrary set) |
|
Material |
Interior box:SUS304# stainless steel, |
|
Power |
380V, 50HZ, 10A |
|
Weight |
230KG |
|
Volume of test box |
750*600*1780MM(W*D*H) |
|
Volume of controller box |
400*400*1150MM |
| Optional |
Video monitoring system, Temperature, Voltage acquisition system, Fire extinguishing system |

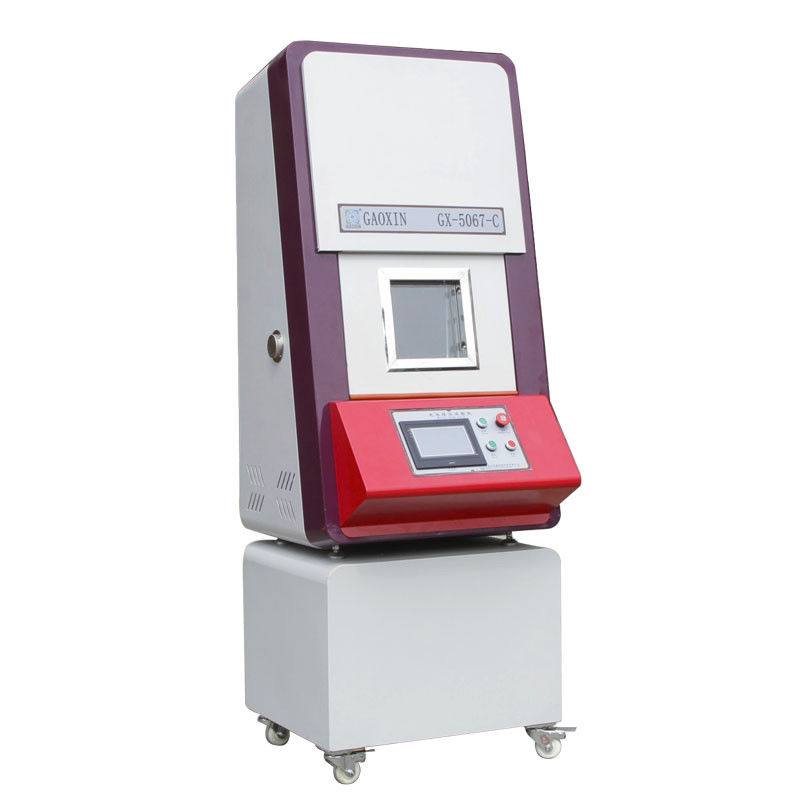

3.Pictures
