    Product Details:

    Place of Origin: China
    Brand Name: Gaoxin
    Certification: CE
    Model Number: GX-3040

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 25 working days
    Payment Terms: FOB Shenzhen, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Function: Neutral Salt Water Test, Corrosion Test Material: Imported PVC Board &P.P,depth Of 5mm
    Spray Quantity: 1.0~2.0ml/80cm2/h Adjustable, (collect For 16 Hours And Take The Average) Heating Method: Direct Heating, Rapid Temperature Lifting
    Timer: 0~99999hr(Italy VEMER) Relay: Japan OMRON
    Switch: Switch With Lamp, Can Work For 25000 Times Product Name: Salt Spray Corrosion Test Chamber

    Touch Screen Battery Environment Chamber Salt Spray Corrosion Testing Chamber for NSS ACSS and CASS​

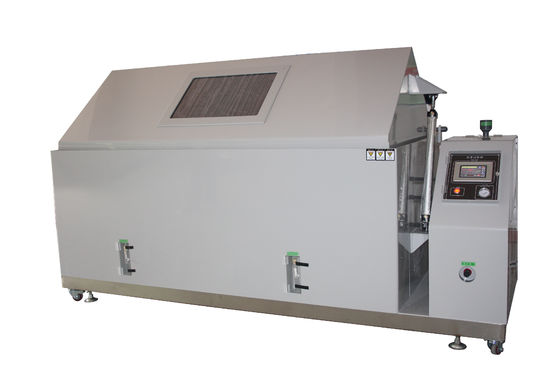

    1.Product Name:Salt fog testing machine



    2.Product Model:GX-3040



    3.Description:The salt spray tester is used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.



    4.Technical Parameter:

    Model

    GX-3040-60

    GX-3040-90

    GX-3040-120

    GX-3040-160

    Test room volume

    (L×W×H)cm

    60×40×45

    90×60×50

    120×80×60

    160×100×60

    Outward volume(W×D×H)cm

    103×60×107

    146×91×128

    220×120×145

    260×145×155

    Spraying mode

    Continuous spray or programmable control intermittent spray( optional )

    Material

    Imported PVC board &P.P,depth of 5mm

    Test temperature

    Neutral salt water test(NSS ACSS)35±1℃; Corrosion test (CASS)50±1℃

    Saturated air barrel temperature

    Neutral salt water test(NSS ACSS)47±1℃; Corrosion test(CASS)63±1℃

    Spray quantity

    1.0~2.0

    PH value

    Neutral salt water test(NSS ACSS)6.5~7.2; Corrosion test(CASS)3.0~3.2



    Test capacity(L)

    108

    270

    480

    800

    Power

    1∮,AC220V,15A

    1∮,AC220V,20A

    1∮,AC220V,30A



    5.Standard configuration:

    Item

    Quantity

    Item

    Quantity

    Sample holder

    14

    Metering cylinder

    2

    Temperature indicator

    2

    Collector

    2

    Spray nozzle

    1

    Humidity cup

    1

    Operation manual

    1

    5L Measuring cup

    1

    Solvent (Nacl)         500 g/bottle    2bottles

    PH test paper



    Touch Screen Battery Environment Chamber Salt Spray Corrosion Testing Chamber for NSS ACSS and CASSTouch Screen Battery Environment Chamber Salt Spray Corrosion Testing Chamber for NSS ACSS and CASS





    6.Company information

    Dongguan  Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

    Our advantages:

    (1) Speciality in testing equipment

    (2) Various products to choose from

    (3) Accept customization

    (4) Excellent after-sale service

    Touch Screen Battery Environment Chamber Salt Spray Corrosion Testing Chamber for NSS ACSS and CASSTouch Screen Battery Environment Chamber Salt Spray Corrosion Testing Chamber for NSS ACSS and CASSTouch Screen Battery Environment Chamber Salt Spray Corrosion Testing Chamber for NSS ACSS and CASS
