500 - 2000Kg Capacity Double Column Tensile Testing Equipment Tension Testing Machine

Basic Information
Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001:2008
Model Number: GX-8001
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International strong wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 30 sets per monh
Detail Information
Capacity: 10,20kN Or Customized Unit Exchange: Kgf ,lbf ,N, KN, Kpa, Mpa
Load Resolution: 1/100,000 Or(1/200,000optional) Maximum Stroke: 1100mm Or Customized
Valid Width: 410mm Testing Speed: 0.0001~1000mm/min Optional
Application: Textile Tensile Strength Test
High Light:

tensile testing machine

,

universal testing machine


Product Description

500 - 2000Kg Capacity Double Column Tensile Testing Equipment Tension Testing Machine





1. Quick  Details



Alternative name

Tension Strength Tester

Function

Test  for  tensile strength, elongation, extension, and peeling, tearing strength of leather, fabrics, shoes...

Type

Servo motor and computer controller tensile test machine

Weight

300kg

Volume

105×105×151cm

Corresponding test standard

ASTM D1790,D1593,JIS K6545,HB-T2877, CNS-7705





2. Textile Material Strength Testing Machine Description



The tensile testing equipment can be used for the test of the tensile strength,compressive strength,elongation and so on. The equipment can also provide tests for peeling,tearing,compressing,shearing and viscous force ,which are applied widely in industries like mental,plastic,rubber,textile,compound chemicals,cable and wire,leather.



3. Textile Material Strength Testing Machine Technical Parameter



Model

GX-8001

Max. load

500 - 2000kg

Unit exchange

kg, N, LB

Accuracy of load

± 0.5% of indicated value

Load resolution

1/10,000

Load Magnifying Rate

Variable speed

Max. tensile space

1200mm (not including fixture)

Valid test width

410mm

Test speed

0.5-600mm/min, optional

Speed control system

Knob

Speed accuracy

± 0.5%

Displacement accuracy

0.001mm

Data sampling

50r/s

Motor

AC servo motor

Control system

Computer

Weight

250kg

Fixture

A pair of tensile fixture or other fixture one pair made to order

Standard  Accessories

Load frame, servo oil source, control box, servo valve, Japan Nachi Pump;
oil pressure sensor (Load cell is optional), liner displacement sensor,
tensile test Jaws, compression platen, bending test accessory, extensometer
PC, printer, Professional software, tools, anchor bolts, manual

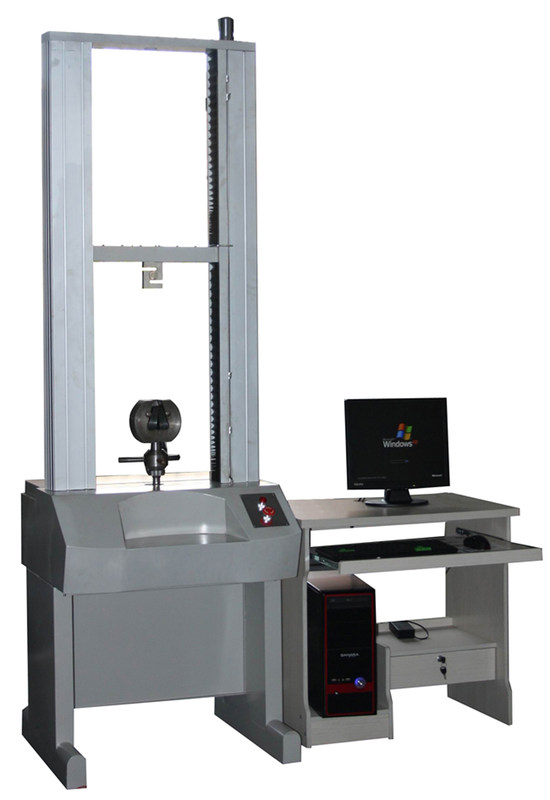

4. Textile Material Strength Testing Machine Picture

 500 - 2000Kg Capacity Double Column Tensile Testing Equipment Tension Testing Machine 0



5. Company Information



500 - 2000Kg Capacity Double Column Tensile Testing Equipment Tension Testing Machine 1500 - 2000Kg Capacity Double Column Tensile Testing Equipment Tension Testing Machine 2500 - 2000Kg Capacity Double Column Tensile Testing Equipment Tension Testing Machine 3
