Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester

China Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester supplier
Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester supplier Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester supplier Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester supplier

Large Image :  Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester

Product Details:

Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001:2008
Model Number: GX-8002

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: International strong wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 30 sets per monh
Contact Now
Detailed Product Description
Capacity: 2kN (option, Can Customize) Unit Exchange: Kgf ,lbf ,N, KN, Kpa, Mpa
Effective Measuring Range: 0.2%~100%(1grade) Maximum Stroke: 600mm(can Be Increased The Height According To Customers Requirement)
Testing Speed: 0.5~500mm/min Testing Platform Moving Device: Fast /slow Two Speeds To Control, Can Jog
Power System: Panasonic AC Servo Motor + Driver Application: Leather Material

Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester





1.  Leather Material Tensile/ Flexing/Tearing Strength Testing Equipment/Machine



Usage: Tensile test, flexing test, tearing test and so on.



Standards: Most internation standards including ISO, ASTM and so on.



Application: Leather Materials





2. Technical Parameter(accept customization)



Model

GX-8002

Max load

2kN (option, can customize)

Accurate grade

1 grade

Effective measuring range

0.2%~100%(1grade)

Measuring accuracy

the value ±1%

Tester resolution

Max load 1/100,000, constant the resolution

Load sensor

Basic configuration, sensor(max load), one

Extended configuration, can add more sensors

Effective working space

600mm(can be increased the height according to customers requirement)

Range of testing speed

0.5~500mm/min

safety

Electronic-limit protection

Testing platform moving  device

Fast /slow two speeds to control, can jog

Return back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

Overload 10%,automatic protection

fixture

A set of fixture

Machine size

400×500×1300mmm (length*width*height)

Power system

Panasonic AC Servo Motor + Driver

Power supply

220V,50HZ or specified by user

Power

0.66kW(depending on different demand of force, using different motor)

Net weight

(appr)80 kg

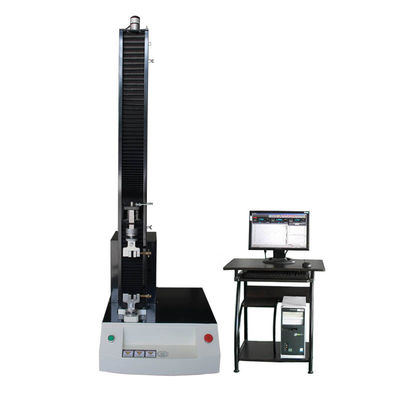

3. Product Picture



                                       Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester



4. Company Information



Founded in 2004, Gaoxin is a recognized professional manufacturer in the materials testing industry. Our goal is to provide our customers the best ownership experience by delivering the highest quality products, expert support and world-class service.



Gaoxin manufactures professional testing machines used to test the mechanical properties and performance of various materials, components and structures in a wide array of environments. We offer accessories and software for these systems so that they can be used to solve testing challenges for different materials or standards.



Computer Controlled Servo Motor Tensile Testing Machine Universal Materials Flexing Tearing Tensile Strength Tester
