    Crush Battery Testing Equipment battery Cell Tester High Accuracy Pressure Sensor

    Product Details:

    Place of Origin: Guangdong, China
    Brand Name: Gaoxin
    Certification: ISO 9001
    Model Number: GX-5067-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiable
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 15 ~ 20 days
    Payment Terms: L/C, T/T
    Supply Ability: 20 sets per months
    Get Best Price Contact Now

    Detail Information

    Drive Mode: Hydraulic Drive Pressure Range: 20T ~ 300 T Or Customized
    Measurable Battery: 500mm ~ 2000 Mm Control Mode: Controlled By Computer Or PLC
    Displacement Resolution: 0.01mm Sampling Rate: 200 Times/s
    Signal Transmission: RS232/ USB Serial-port Pressure Control Precision: ±1%, Sensor Resolution: 1/100,000
    Lighting Settings: Explosion-proof Lighting Supply Power: AC380V± 10%,50/60HZ
    High Light:

    battery test equipment

    ,

    battery testing instruments

    Product Description

    Crush Battery Testing Equipment battery Cell Tester High Accuracy Pressure Sensor

    High Accuracy Pressure Sensor Touch Screen Display Battery Crush Testing Equipment Power Battery Crush Testing Machine





    Production Description



    The machine is used to simulate the various types of power battery monomer,  battery pack and battery system in use, the battery is subject to the backlog of cases, the battery presents the extrusion is likely to occur under different conditions, detection and evaluation of battery products of the safety performance. The equipment on fire or explosion should be able to absolutely guarantee personal safety and not cause harm to the environment.



    Product specifications





    Drive mode Hydraulic pressure
    Pressure range  20T/50T/100T/200T/300T or customized
    Measurable battery 500mm ~ 3000mm
    Extrusion direction

    Perpendicular to the direction of the battery plate or

    parallel to the direction of the battery module

    Force sensor High accuracy pressure sensor display by computer
    Control mode controlled by computer or PLC
    Displacement resolution 0.01mm
    Sampling rate 200 times/s
    Delay function

    0-999 min test time adjustable

    Monitor system The monitor screen can be stored as a copy
    Observing window Two-layer visible explosion proof glasses
    Lighting settings Explosion-proof lighting
    Supply Power AC380V±10%, 50/60HZ

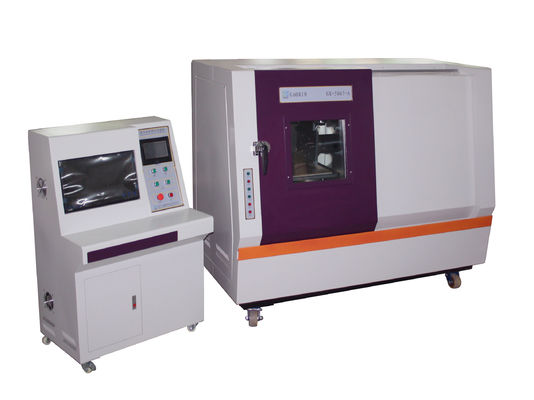

    Crush Battery Testing Equipment battery Cell Tester High Accuracy Pressure Sensor 0



    Company introduction:



    Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

    Our advantages:

    (1) Speciality in testing equipment

    (2) Various products to choose from

    (3) Accept customization

    (4) Excellent after-sale service



    Our products mainly divided into:



    1. environment simulation test chamber

    2. battery safety testing machine

    3. Footwear and leather testers;

    4, rubber and plastic tester

    5, tensile tester

    6. paper and packaging tester

    7. cable tester



    After sale service:



    1. operation manual and video, till user can operate the testing machine masterly.

    2. one year warranty

    3. free operation training.

    4. professional engineer to solve any problems or confusion about the test equipment.

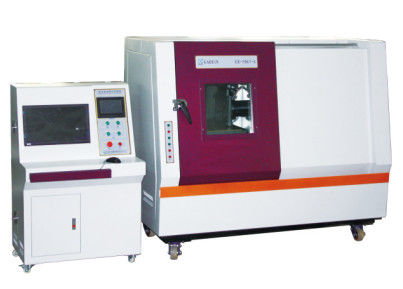

    Crush Battery Testing Equipment battery Cell Tester High Accuracy Pressure Sensor 1
