• Double Column Computer Display Tensile Testing Equipment Celtron Load Cell Sensor
Double Column Computer Display Tensile Testing Equipment Celtron Load Cell Sensor

Double Column Computer Display Tensile Testing Equipment Celtron Load Cell Sensor

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: GAOIXN
Certification: ISO 9001:2008; QS-9000; CE
Model Number: GX-8001

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 work days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union,
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Power: Servo Sensor: Celtron Load Cell
Capacity: 500, 1000, 2000kg Accuracy: ±0.5%
Test Speed: 25-500mm/min
High Light:

tensile testing machine

,

tensile test equipment

Product Description

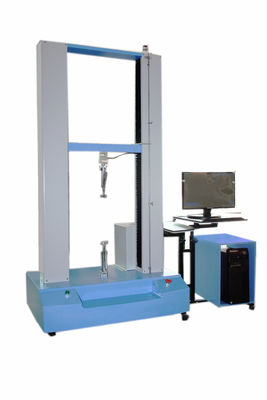

Double Column Computer Display Hydraulic Tensile Strength Tester



Specifications:

Model

GX-8001

Maximum load

500, 1000, 2000kg (optional)

Accurate

1 grade

Measuring accuracy

The value ±1% / the value±0.5%

Tester resolution

Max load 1/100000, constant the resolution

Effective testing width

400mm (or can be widened as customers requirement )

Effective tensile space

650,800,1000mm (or can be increased the height according to customers requirement)

 Testing speed

From 0.5 to 1000mm/min

Unit

kgf, gf, lbf, N, kN, Mpa, pa(optional)

Accruacy of displacement measurement

Tolerance: ±0.5%

Accuracy of measured deformation

Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

Safety

Electronic-limit protection

Testing plat form moving  device

Fast /slow( two speeds to control) ,can jog

Return Back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

 Overload 10%, automatic protection

Fixture

One set of tensile clamp

Volume

800*1000*2500mm (L*W*H)

Motor

servo motor and drive

Power

220V,50HZ or as the requirement

Wattage

0.66kW (different demand of force with different motor)

Weight

 300 Kg(approx)


Description:

Tensile testing equipment with Servo motor  is widely used in controlling the quality; Rubber, Plastics;
metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production;
textile fiber; wire and cable; packaging materials etc.
Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.

Applicable industry:

Tensile test machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.






 Company introduction:



Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service



Our products mainly divided into:



1. environment simulation test chamber

2. battery safety testing machine

3. Footwear and leather testers;

4, rubber and plastic tester

5, tensile tester

6. paper and packaging tester

7. cable tester



After sale service:



1. operation manual and video, till user can operate the testing machine masterly.

2. one year warranty

3. free operation training.

4. professional engineer to solve any problems or confusion about the test equipment.
