Computer Control Tearing Strength Tensile Testing Equipment Universal Tester
Product Details:
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | GAOIXN |
| Certification: | ISO 9001:2008; QS-9000; CE |
| Model Number: | GX-8001-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 15 work days |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Power: | Servo | Type: | Universal Tensile Testing Machine |
|---|---|---|---|
| Sensor: | Celtron Load Cell | Capacity: | 500, 1000, 2000, 3000, 5000kg |
| Accuracy: | ±0.5% | ||
| High Light: | tensile testing machine,universal testing machine |
||
Product Description
Computer Control Tearing Strength Universal Testing Machine,UTM
Specifications:
|
Model |
GX-8001-M |
|
Maximum load |
2kN,5kN,10kN,20kN (optional) |
|
Accurate |
1 grade |
|
Measuring accuracy |
The value ±1% / the value±0.5% |
|
Tester resolution |
Max load 1/100000, constant the resolution |
|
Effective testing width |
400mm (or can be widened as customers requirement ) |
|
Effective tensile space |
650,800,1000mm (or can be increased the height according to customers requirement) |
|
Testing speed |
From 0.5 to 1000mm/min |
|
Unit |
kgf, gf, lbf, N, kN, Mpa, pa(optional) |
|
Accruacy of displacement measurement |
Tolerance: ±0.5% |
|
Accuracy of measured deformation |
Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation) |
|
Safety |
Electronic-limit protection |
|
Testing plat form moving device |
Fast /slow( two speeds to control) ,can jog |
|
Return Back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10%, automatic protection |
|
Fixture |
One set of tensile clamp |
|
Volume |
800*1000*2500mm (L*W*H) |
|
Motor |
servo motor and drive |
|
Power |
220V,50HZ or as the requirement |
|
Wattage |
0.66kW (different demand of force with different motor) |
|
Weight |
300 Kg(approx) |
Description:
A universal testing machine (UTM), also known as a universal tester,materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. The "universal" part of the name reflects that it can perform many standard tensile and compression tests on materials, components, and structures (in other words, that it is versatile).
Applicable industry:
Universal testing machine (UTM) is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.

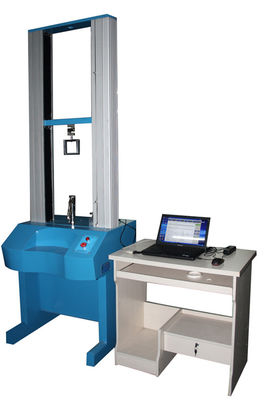

Pictures:
Company introduction:
Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.
Our advantages:
(1) Speciality in testing equipment
(2) Various products to choose from
(3) Accept customization
(4) Excellent after-sale service
Our products mainly divided into:
1. environment simulation test chamber
2. battery safety testing machine
3. Footwear and leather testers;
4, rubber and plastic tester
5, tensile tester
6. paper and packaging tester
7. cable tester
After sale service:
1. operation manual and video, till user can operate the testing machine masterly.
2. one year warranty
3. free operation training.
4. professional engineer to solve any problems or confusion about the test equipment.
