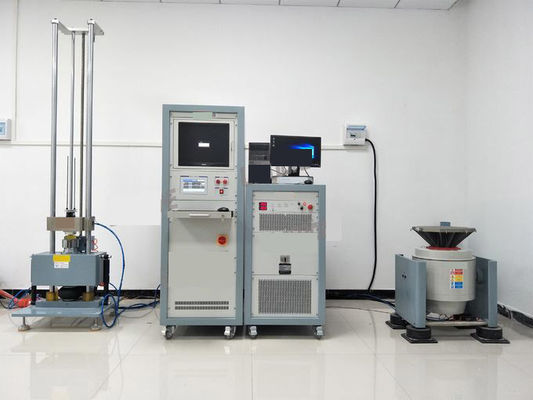

Electrodynamic Vibration Shaker For Electronic Assemblies Test
Product Details:
Place of Origin: | China |
Brand Name: | Gaoxin |
Certification: | ISO 9001 |
Model Number: | GX-600-ZD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiation |
Packaging Details: | Non-fumigation wooden box |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 10 set/batch |
Detail Information |
|||
Function: | Vibration Test | Control Way: | Computer Control |
---|---|---|---|
Frequency Range: | DC~4000 Hz | Maximum Speed: | 1.8m/s |
Max Load: | 120kg | Demension: | 750*560*670mm Vertical Table |
Net Weight: | Aprrox 460kg | ||
High Light: | battery test equipment,battery testing instruments |
Product Description
Electrodynamic Vibration Shaker For Electronic Assemblies Test
1. Product Name: Battery Vibration Testing Machine
2. Model No.:GX-600-ZD
3. equipment usage and application: Vibration environment and impact environment test
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test.
Electromagnetic vibration tester completely according to the standard design battery related testing, simulation, under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
Vibration test of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.
GB/T 31486-2015 <Electrical performance requirements and test methods for traction battery of electric vehicle> Test requirements
4. Test standard:
UL 1642:2012 < Standard for Lithium batteries>
UL 2054: 2012 < Household and Commercial Batteries>
UN38.3(2012) <Part 3: proposal for dangerous goods transport - test and standard manual>
IEC62133-2012 <The safety requirements for battery and battery pack of containing alkaline or acidic electrolyte>
IEC 62281: 2004 <The safety requirements in transport of Lithium battery and battery>
IEC 60086: 2007 <Galvanic cell part 4 the security requirements of lithium-ion batteries>
5. vibration type pause formula and vibration generator structure:
1. Test type: sine vibration; Random vibration;
2. Frequency response range:2-3000Hz
3. The formula:A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2
F=M(kg) ×A(g)
6. equipment composition:
project | Configuration instructions | quantity |
|
Vibration table | |
ZD600-51 Electromagnetic vibration generator | 1 piece | |
BL-600 Cooling fan (including the silencer) | 1 piece | |
Vertical expansion table 400mm*400mm | 1 piece | |
|
Digital switching power amplifier | |
SA-6 digital switch power amplifier | 1 piece | |
servo system | 1set | |
excitation source | 1set | |
|
Digital vibration controller | |
Digital vibration controller | 1 piece | |
The system acceleration sensor | 1pcs | |
Control computer | 1set | |
Control software installation CD | 1set | |
|
accessories | |
Extension cable, duct | 1set | |
Instructions, inspection reports, certificate of approval, maintenance manuals, etc | 1set | |
Attached special tools | 1set | |
Vibration compressive bar/layering fixture | 1set | |
Cushioning airbags | 4pcs | |
Computer desk | 1 piece |
7.Company introduction:
Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.
Our advantages:
(1) Speciality in testing equipment
(2) Various products to choose from
(3) Accept customization
(4) Excellent after-sale service
Our products mainly divided into:
1. environment simulation test chamber
2. battery safety testing machine
3. Footwear and leather testers;
4, rubber and plastic tester
5, tensile tester
6. paper and packaging tester
7. cable tester
After sale service:
1. operation manual and video, till user can operate the testing machine masterly.
2. one year warranty
3. free operation training.
4. professional engineer to solve any problems or confusion about the test equipment.
